Overhaul

Center Console Disassembly/Reassembly

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the front seat, dashboard, and related parts.

1. Remove the center console.

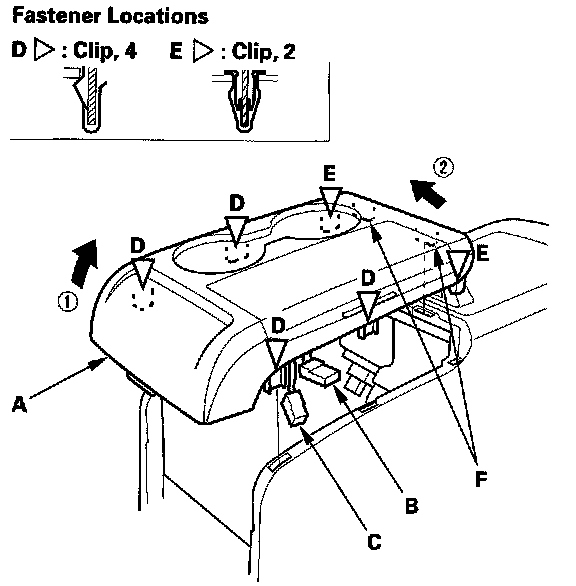

2. Remove the center console upper panel (A).
1. Disconnect the console accessory power socket connector (B) and the auxiliary jack assembly connector (C).
2. Gently pull the front portion of the center console upper panel up, and remove the clips (D).
3. Pull the rear portion of the center console upper panel up, remove the clips (E), and release the hooks (F).

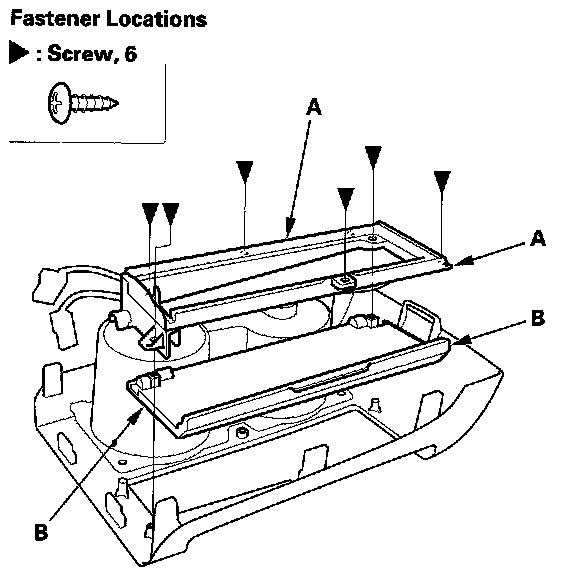

3. From the center console upper panel, remove the screws, then remove the CD box (A) and inner lid (B) or pocket.




4. Remove the screws, then remove the cup holder (A). Detach the harness clips (B), and remove the console subharness (C) from the cup holder.

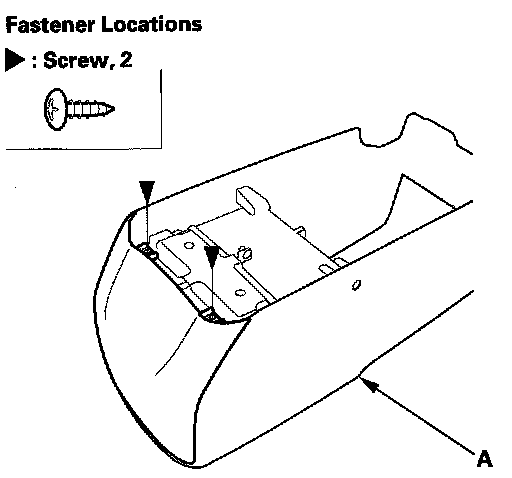

5. From the bottom of the center console (A), remove the screws.

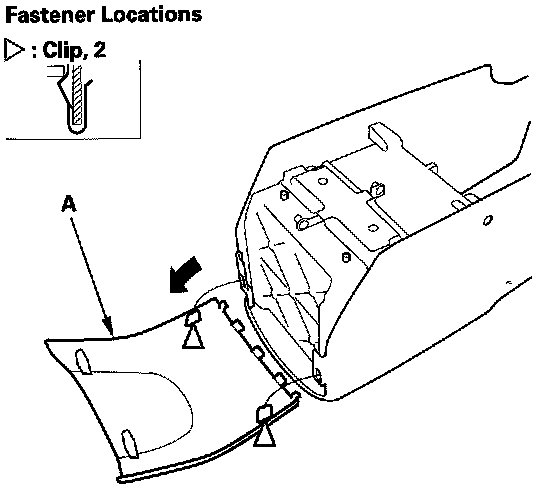

6. Gently pull out the center console rear cover (A) to detach the clips.

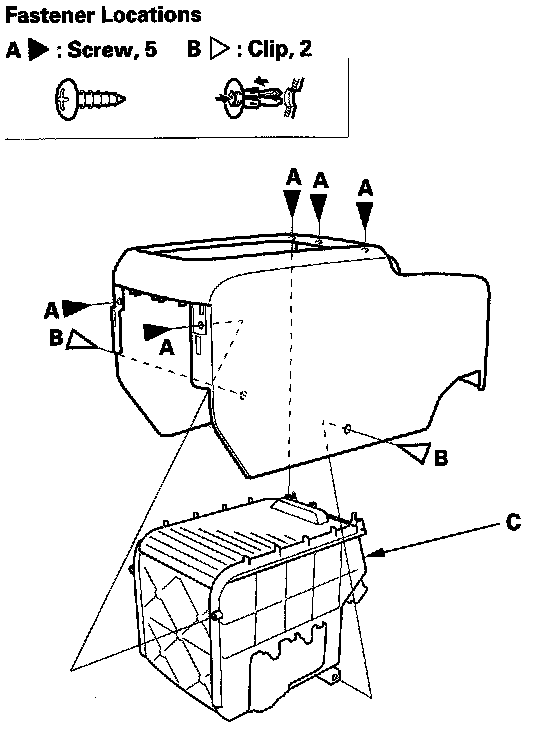

7. Remove the screws (A) and clips (B), then remove the console box (C).

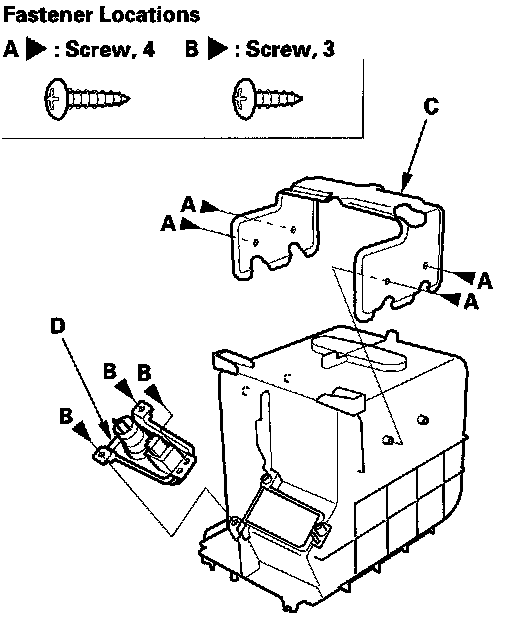

8. Remove the screws (A, B), then remove the bracket (C) and jack panel (D).
9. Reassembly the center console in the reverse order of disassembly, and note these items:
- Make sure all connectors are plugged in properly.
- Push the clips and hooks into place securely.
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
