Rearview Mirror Replacement

Rearview Mirror Replacement




1. Release the hooks (A), then pull the mirror base cover (B) down.

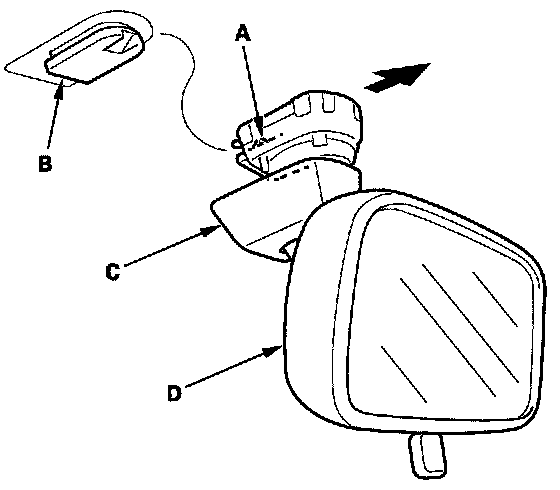

2. Pull the hook (A) down to release it from the mount (B), and slide the mirror base (C) rearward, then remove the real-view mirror (D).
3. Install the mirror base cover on the mirror base securely.




4. Fit the mirror base (A) over the mount (B), and secure the rearview mirror with the spring (C) and hook (D).
