Front Seat Center Table Replacement
Front Seat Center Table ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.
NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the body or tear the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Set up the table.

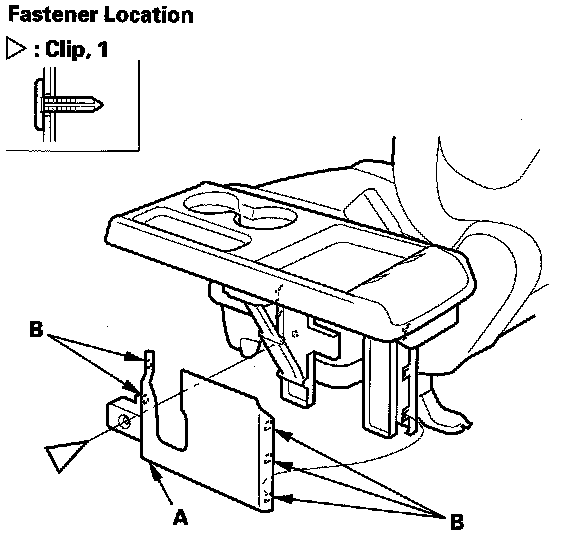

2. Remove the clip and pull the outer cover (A) back to detach the hook (B), then remove it.

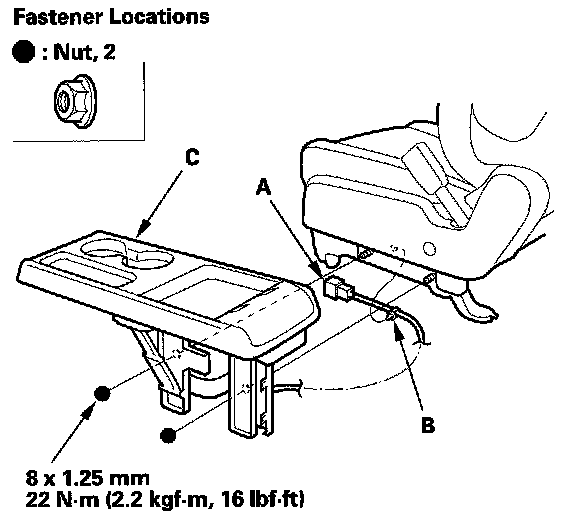

3. For some models: Disconnect the center table cord connector (A), and release the harness clip (B) from the passenger's seat. Remove the nuts, then remove the center table (C).
4. Install the table in the reverse order of removal, and note these items:
- Check if the clip is damaged or stress-whitened, and if necessary, replace it with a new one.
- Push the clip and hooks into place securely.
- Make sure the center table cord connector is plugged in properly, if equipped.
