Front Seat Under Tray Replacement

Front Seat Under Tray Replacement

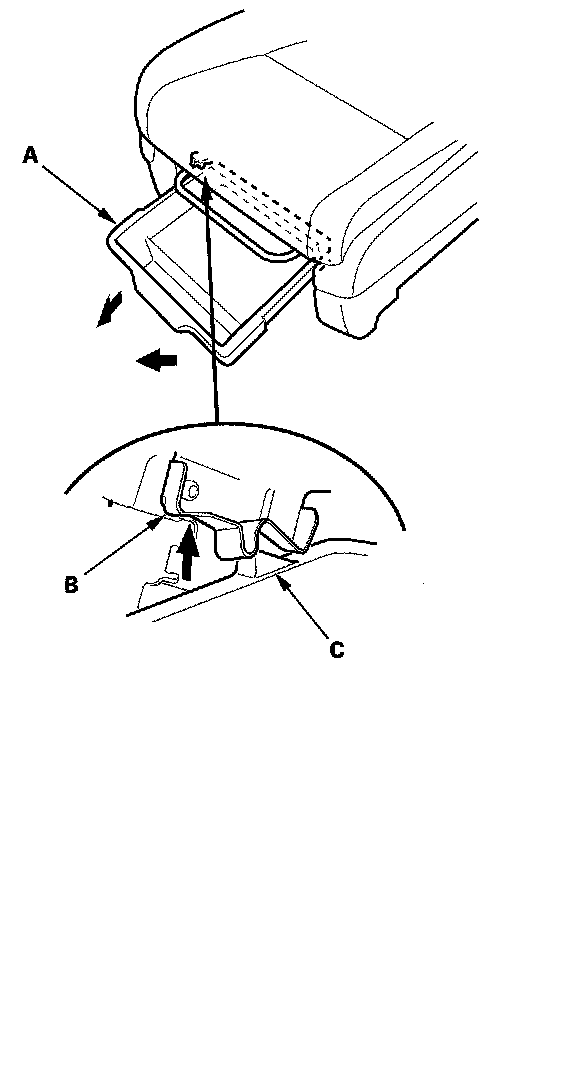

1. Open the under tray (A).
2. While pushing up on one of springs (B) on both guide rails, pull the under tray out until the stop (C) passes under the spring to remove one side of the tray from the guide rail.
3. Tilt the removed side of the under tray down, then pull another side of it off the guide rail.
4. Install the under tray by pushing it on to both guide rails until the springs snap into places.
