Rear Seat

Rear Seat Removal/Installation

NOTE:
- Put on gloves to protect your hands.
- Take care not to tear the seams or damage the seat covers.
- Have an assistant help you when removing and installing the rear seat.
- Right rear seat is shown, and left rear seat is similar.

1. Remove the head restraints.
2. Fold the seat-back forward, and slide the rear seat backward fully.

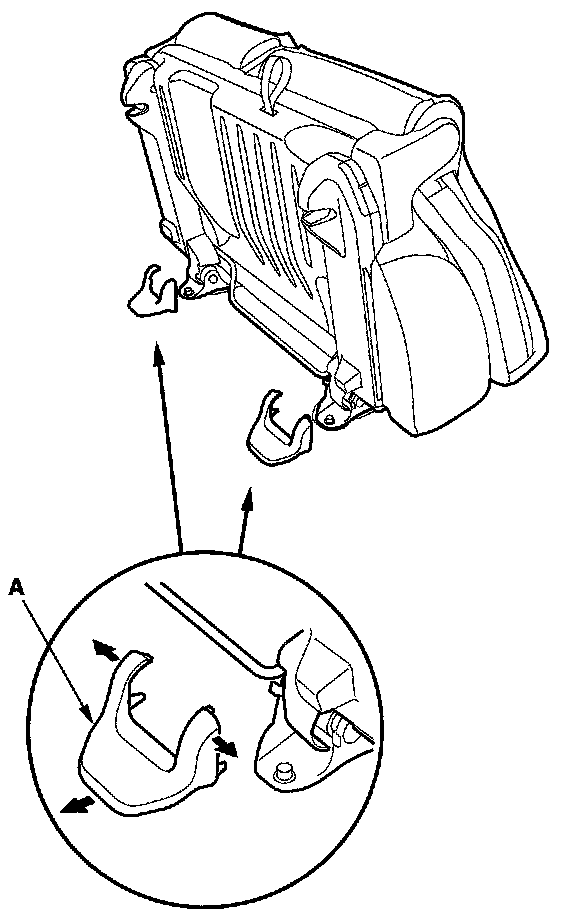

3. Remove the front seat track end covers (A) from the front of both seat tracks.




4. Unlock the rear seat and tip it up, then remove the rear seat track end covers (A) from the back of both seat tracks.

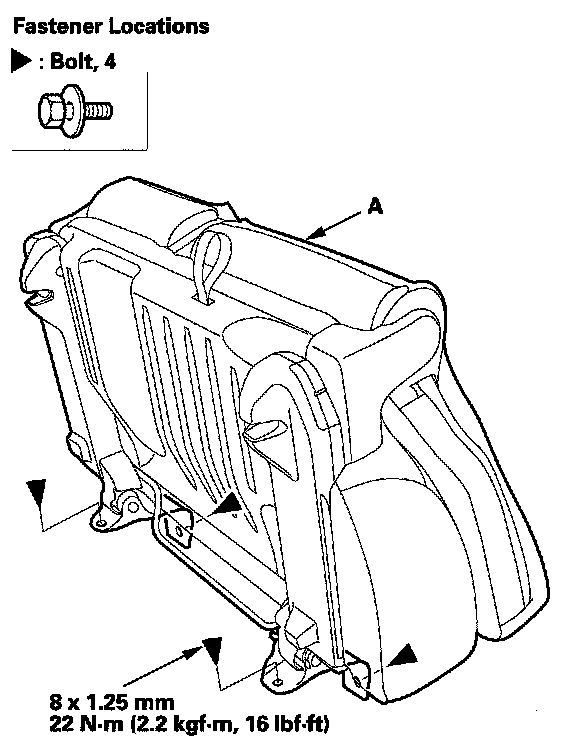

5. While holding the rear seat (A) up, remove the mounting bolts.
6. With the help of an assistant, remove the rear seat through the door opening.
7. Install the rear seat in the reverse order of removal.
