Right Rear Seat-Back Lock Control Cable Replacement
Right Rear Seat-back Lock Control Cable ReplacementNOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
1. Remove the right rear seat.
2. Remove the right seat-back assembly from the seat cushion.
3. Remove the tether anchor cover.
4. Release the bottom hook, unzip the seat-back cover, then fold back the cover.
5. Release the strap from the strap lever.
6. Remove the head restraint guides.
7. Remove the seat-back cover/pad from the frame.
8. Remove the strap lever cover.

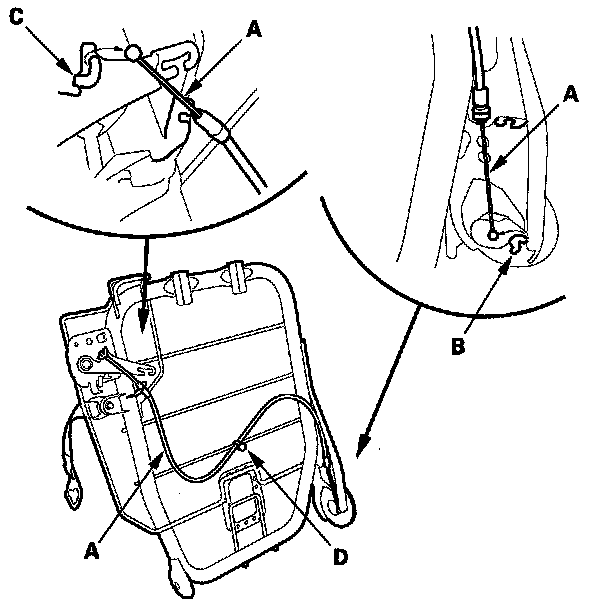

9. Disconnect the seat-back control cable (A) from the inner recline adjuster (B) and the outer recline adjuster (C). Release the clamp (D), then remove the cable.
10. Install the cable in the reverse order of removal, and note these items:
- Replace the clamp you removed with a new one.
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hooks.
