System Diagram

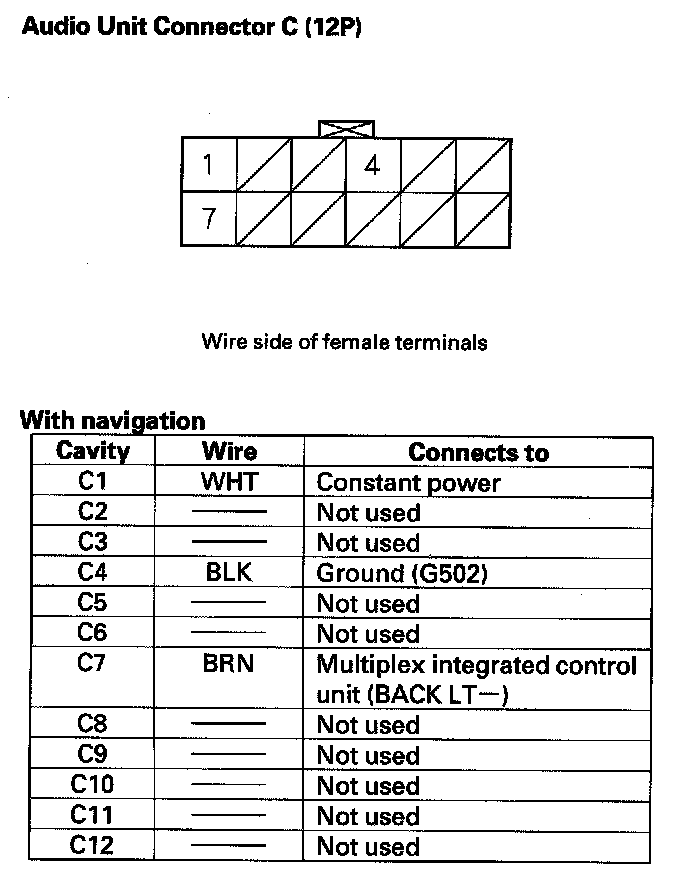

Audio Unit Connector For Inputs And Outputs Part 1:



Audio Unit Connector For Inputs And Outputs Part 2:



Audio Unit Connector For Inputs And Outputs Part 3:



Audio Unit Connector For Inputs And Outputs Part 4:



Audio Unit Connector For Inputs And Outputs Part 5:



Audio Unit Connector For Inputs And Outputs Part 6:

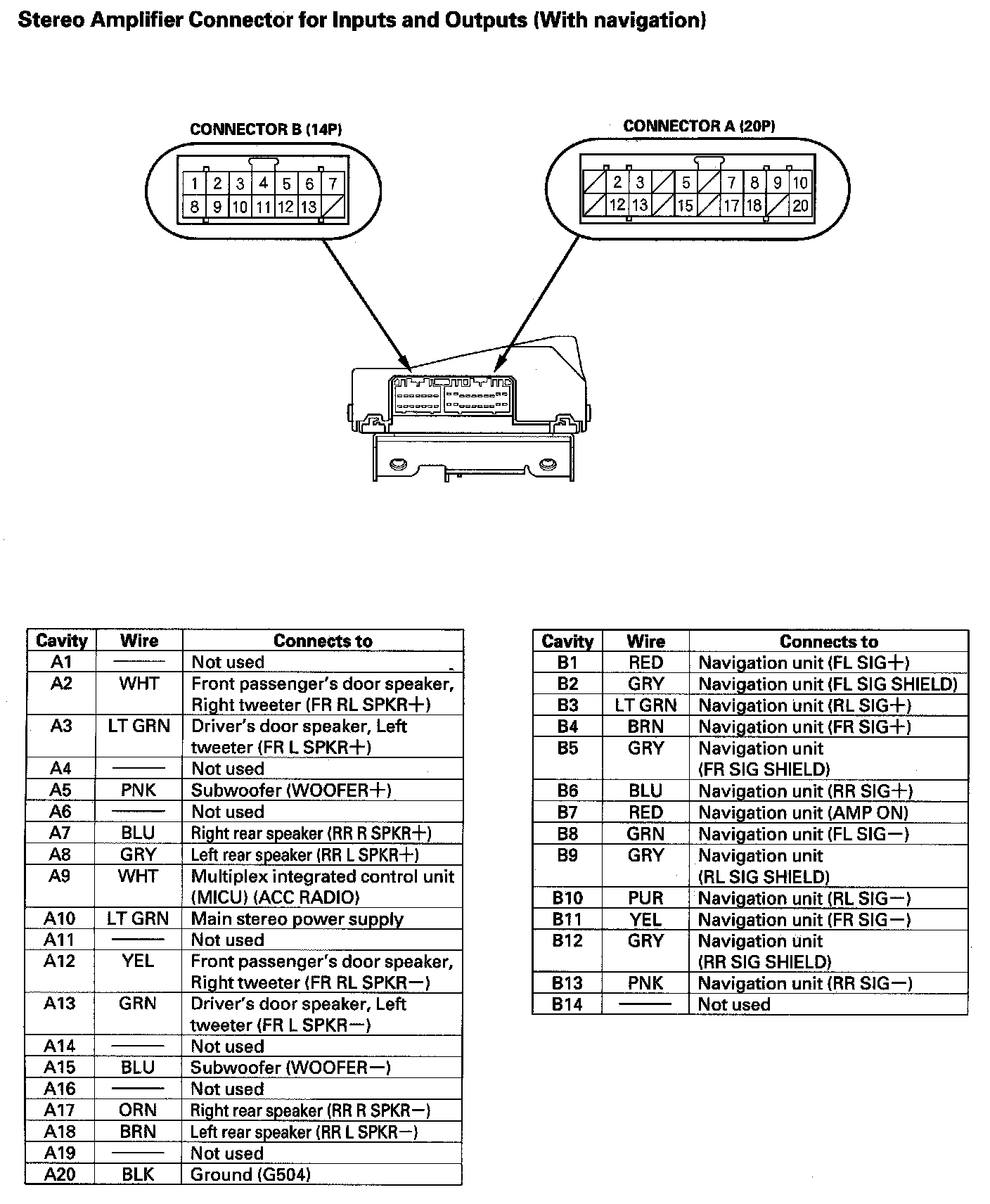

Stereo Amplifier Connector For Inputs And Outputs (With navigation):



XM Receiver Connector For Inputs And Outputs:

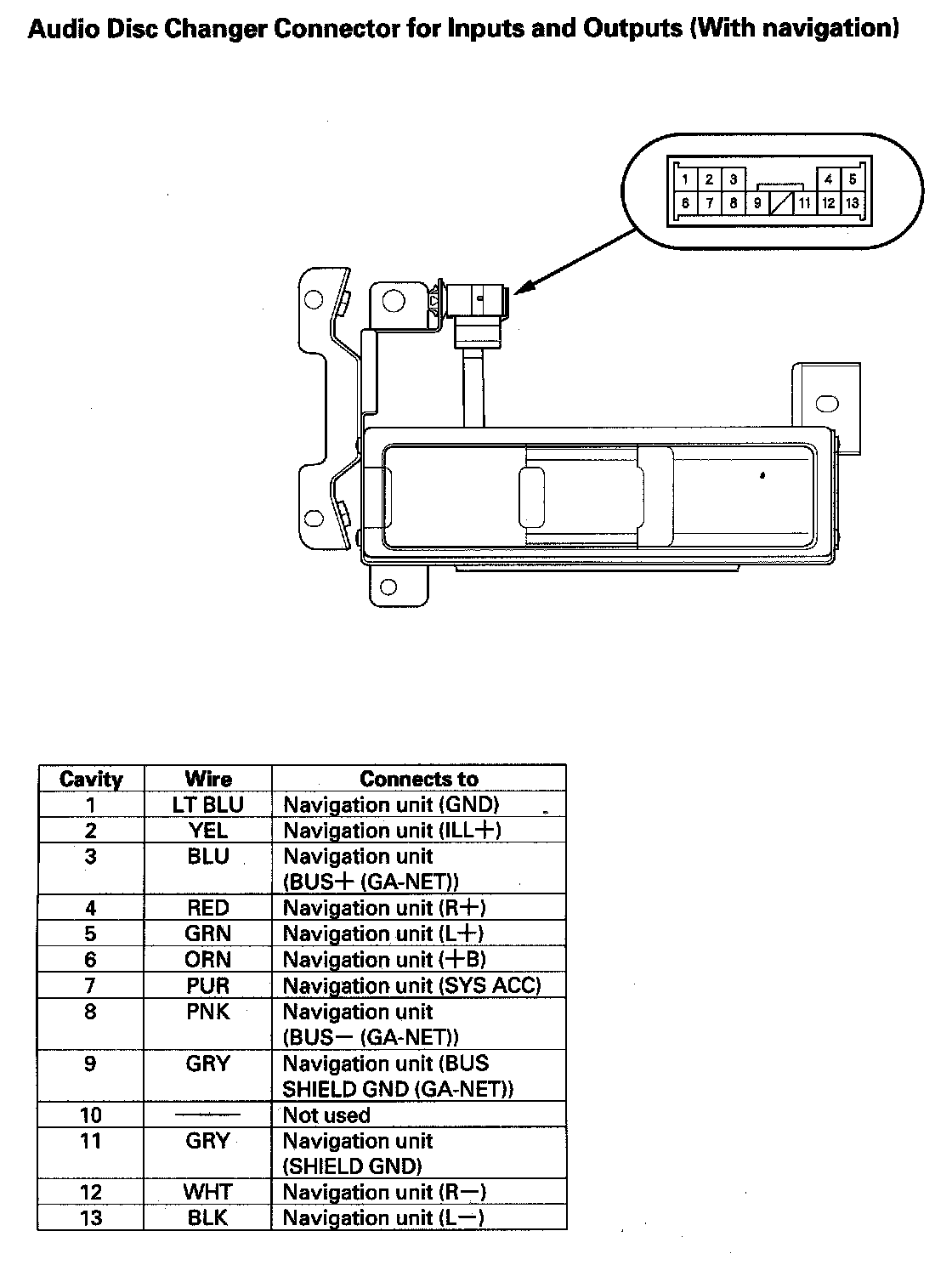

Audio Disc Changer Connetor For Inputs And Outputs (With navigation):

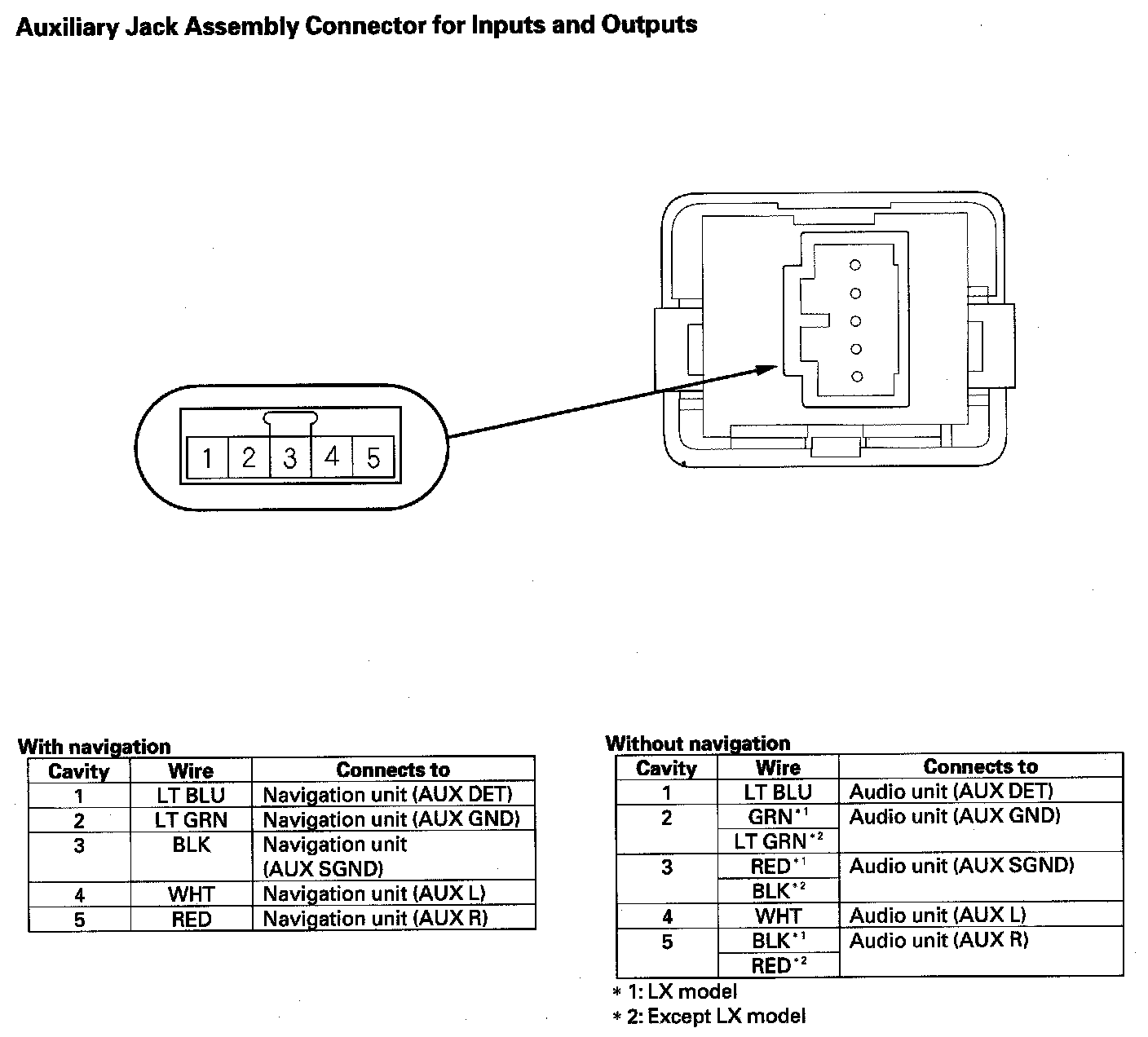

Auxiliary Jack Assembly Connetor For Inputs And Outputs:
