Cylinder Head Cover Removal

Cylinder Head Cover Removal

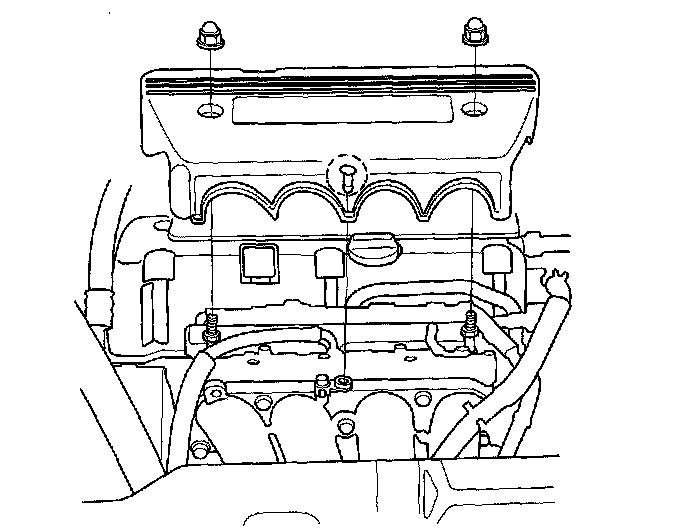

1. Remove the intake manifold cover.





2. Remove the four ignition coils.
3. Disconnect the evaporative emission (EVAP) canister purge valve connector.
4. Remove the dipstick (A), the breather hose (B), and power steering (P/S) hose clamp (C).





5. Remove two bolts (D) securing the EVAP canister purge valve bracket.
6. Remove the cylinder head cover.
