Gauge Control Module

Gauge Control Module Replacement

1. Remove the instrument panel.

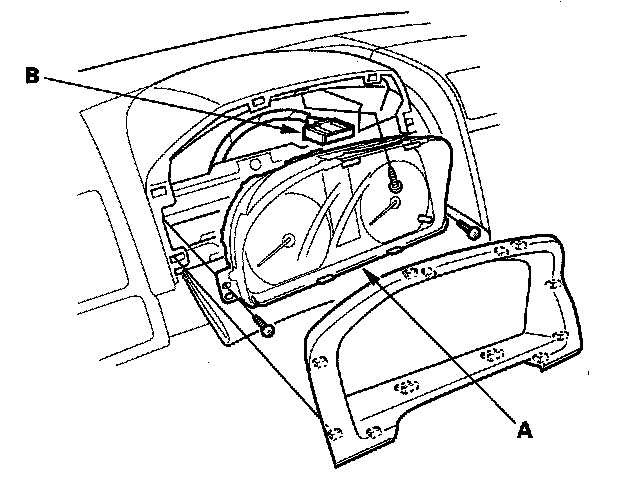

2. Remove the three screws from the gauge control module (A).
3. Disconnect the 36P connector (B) from the gauge control module.
4. Install the gauge in the reverse order of removal.
