Courtesy Lamp: Service and Repair

Ambient Light Test/Replacement

With moonroof

NOTE: The ambient light is built into the moonroof switch.

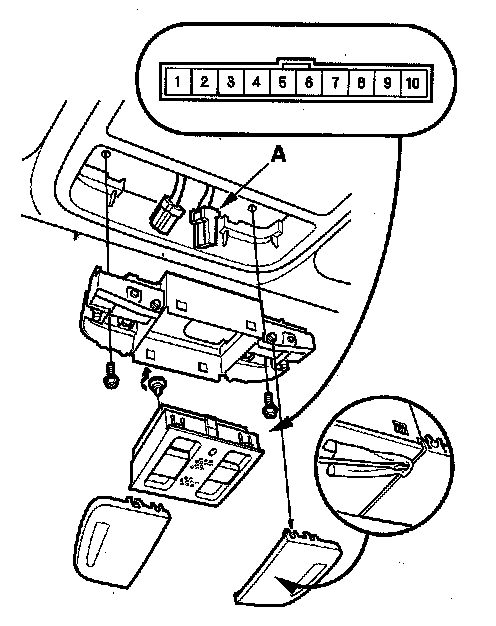

1. Remove the front individual map lights.




2. Disconnect the 10P connector (A) from the moonroof switch.
3. Connect the battery power to the No. 5 terminal and ground to the No. 3 terminal.The ambient light should turn on. If the light does not turn on, replace the moonroof switch as an assembly.
4. Install the switch and light in the reverse order of removal.
