Driver's Seat Position Sensor Harness
Driver's Seat Position Sensor Harness

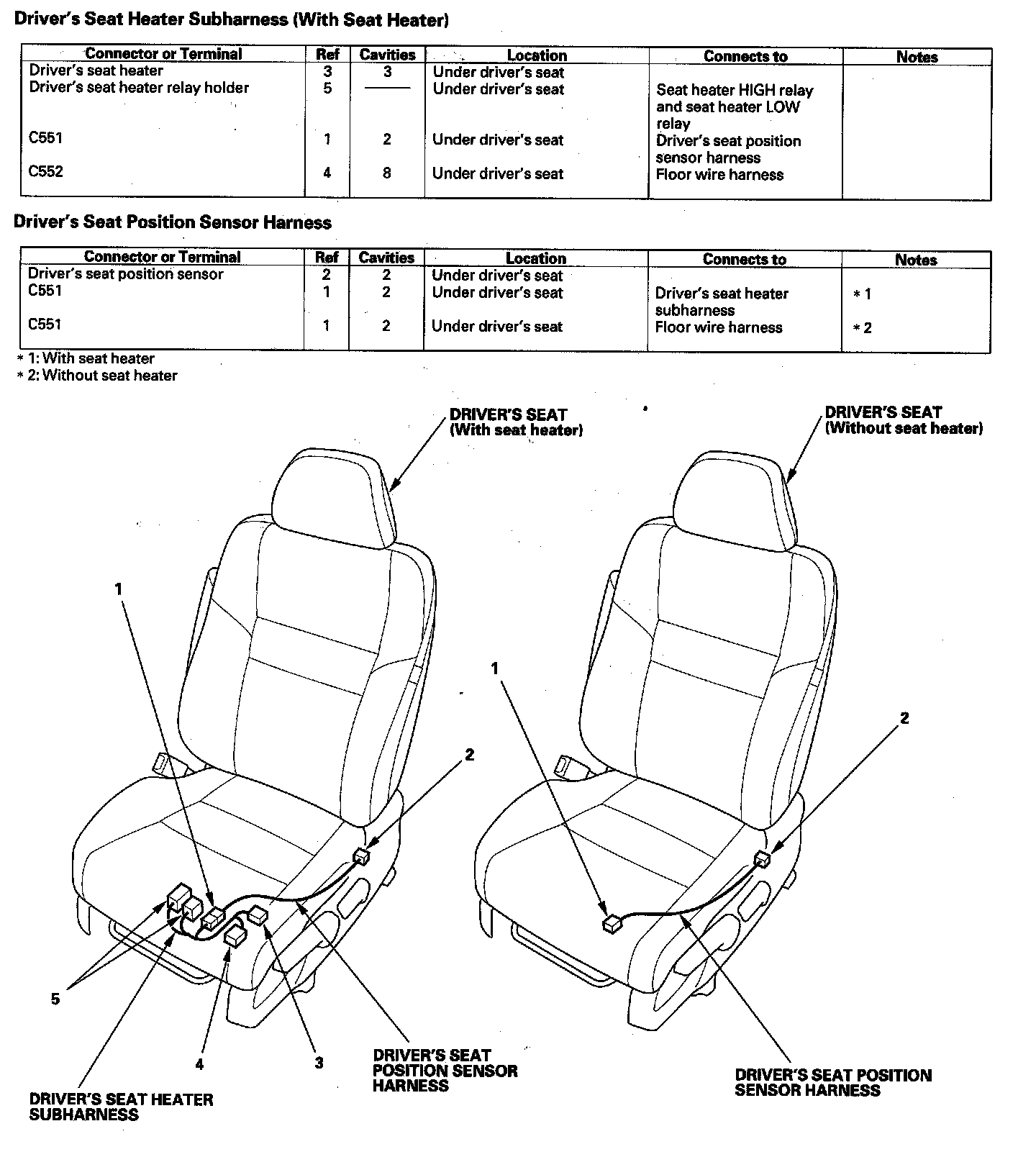

Driver's Seat Heat Subharness (with Seat Heater)/Driver's Seat Position Sensor Harness:
