Main Relay (Computer/Fuel System): Locations

Fuel Supply System Component Location Index:

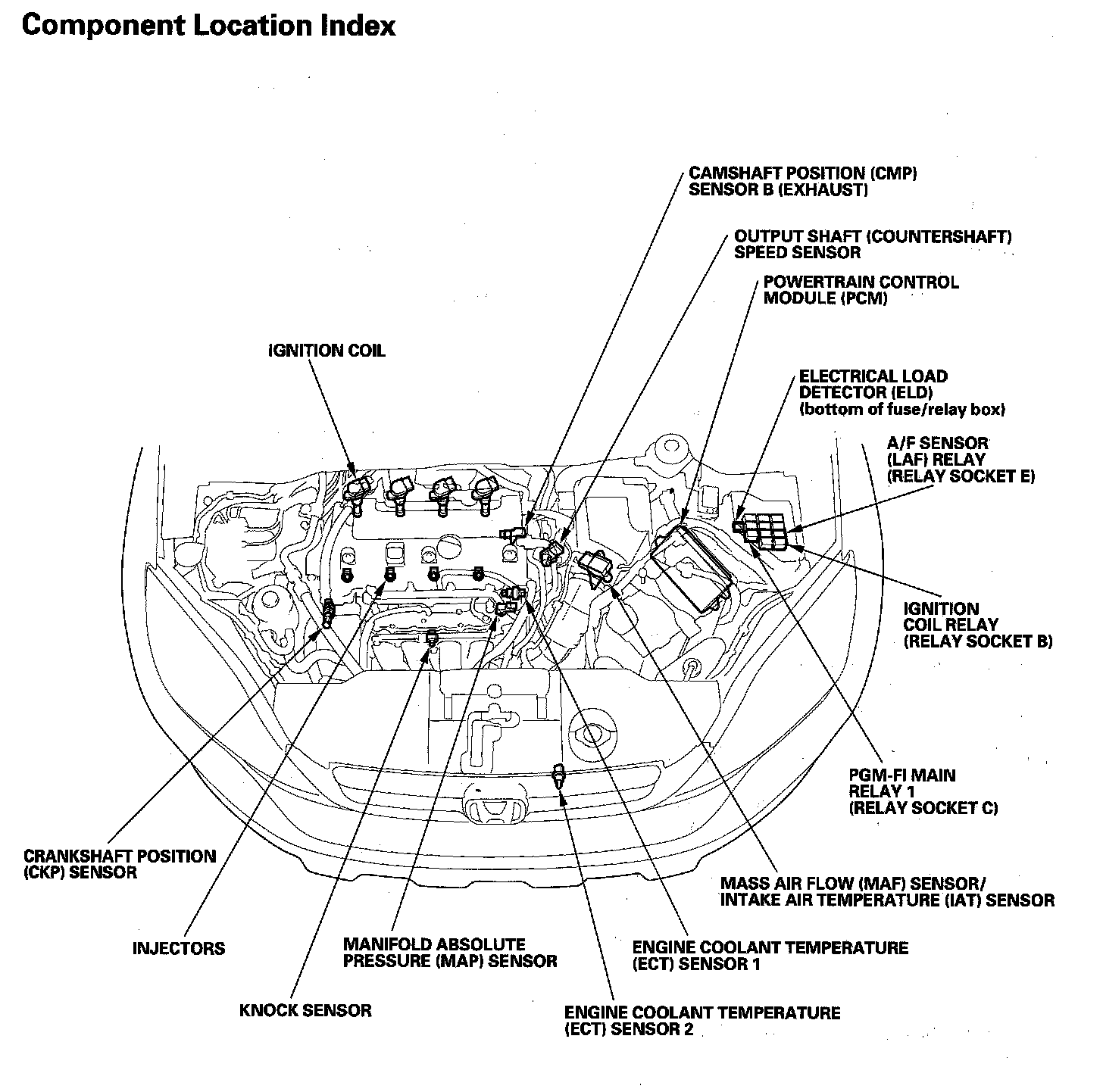

PGM-FI System Component Location Index:

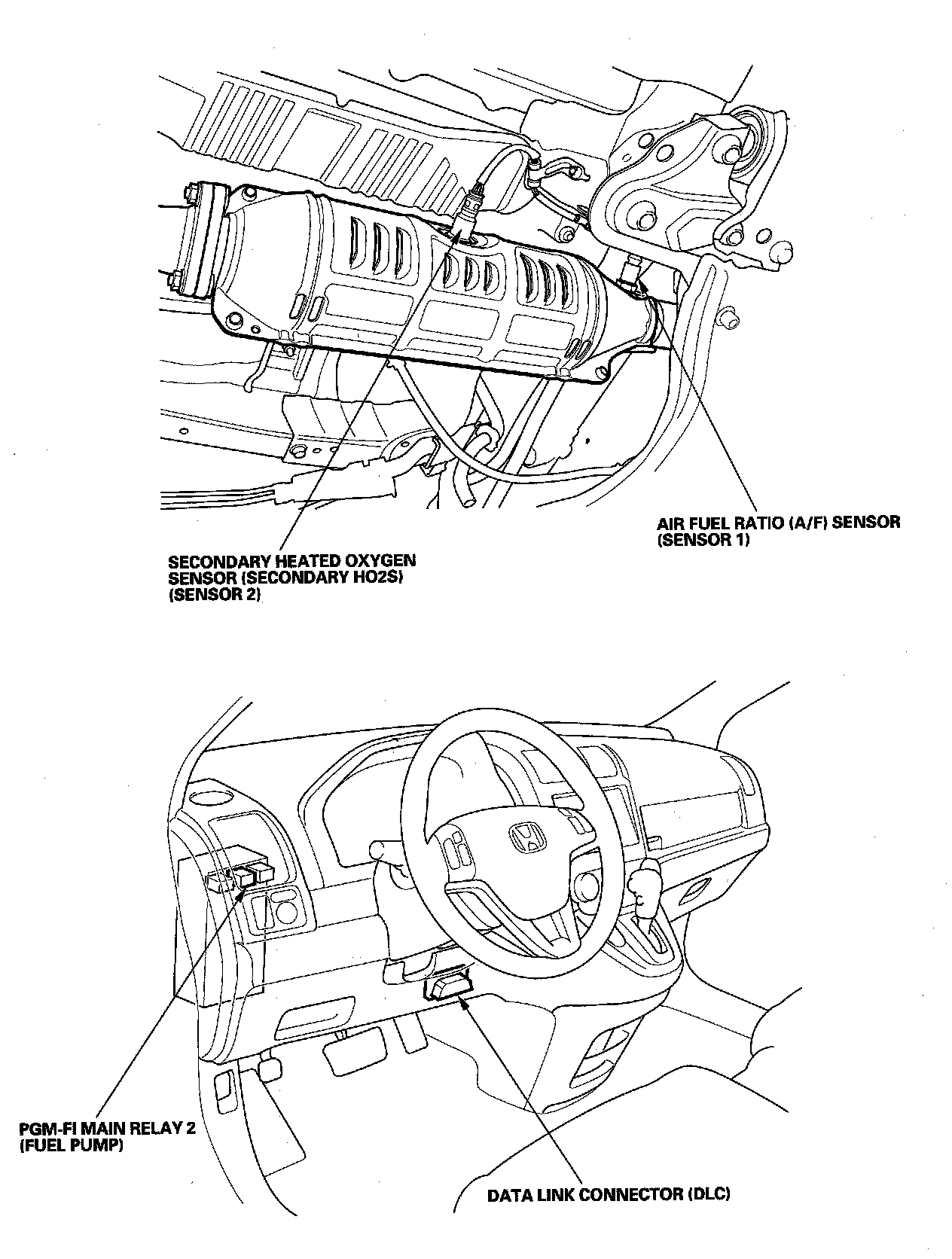

PGM-FI System Component Location Index:

Relay And Control Unit Locations Dashboard:

Relay And Control Unit Locations Engine Compartment:
