Fuel Delivery and Air Induction: Locations

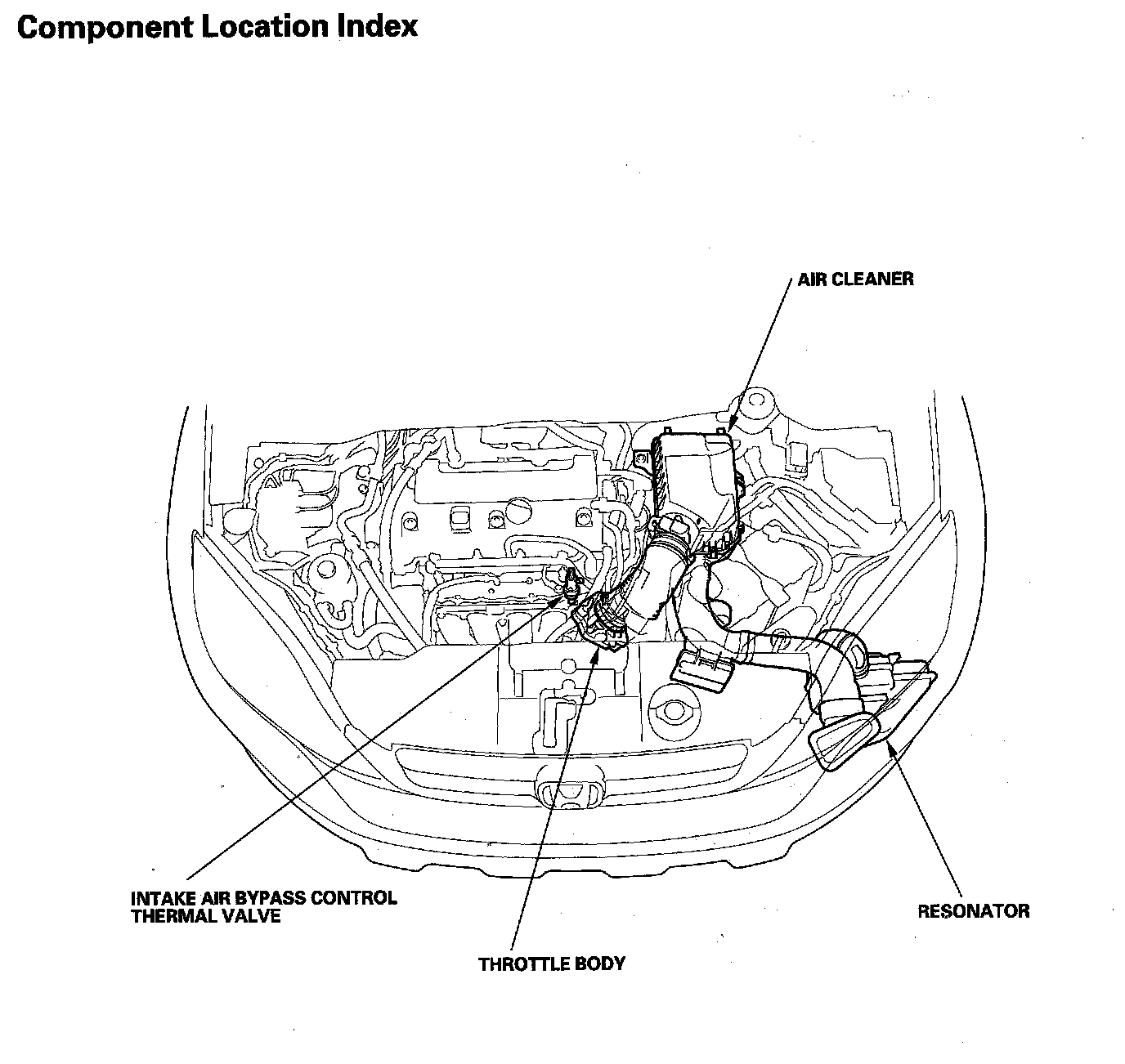

Intake Air System Component Location Index:

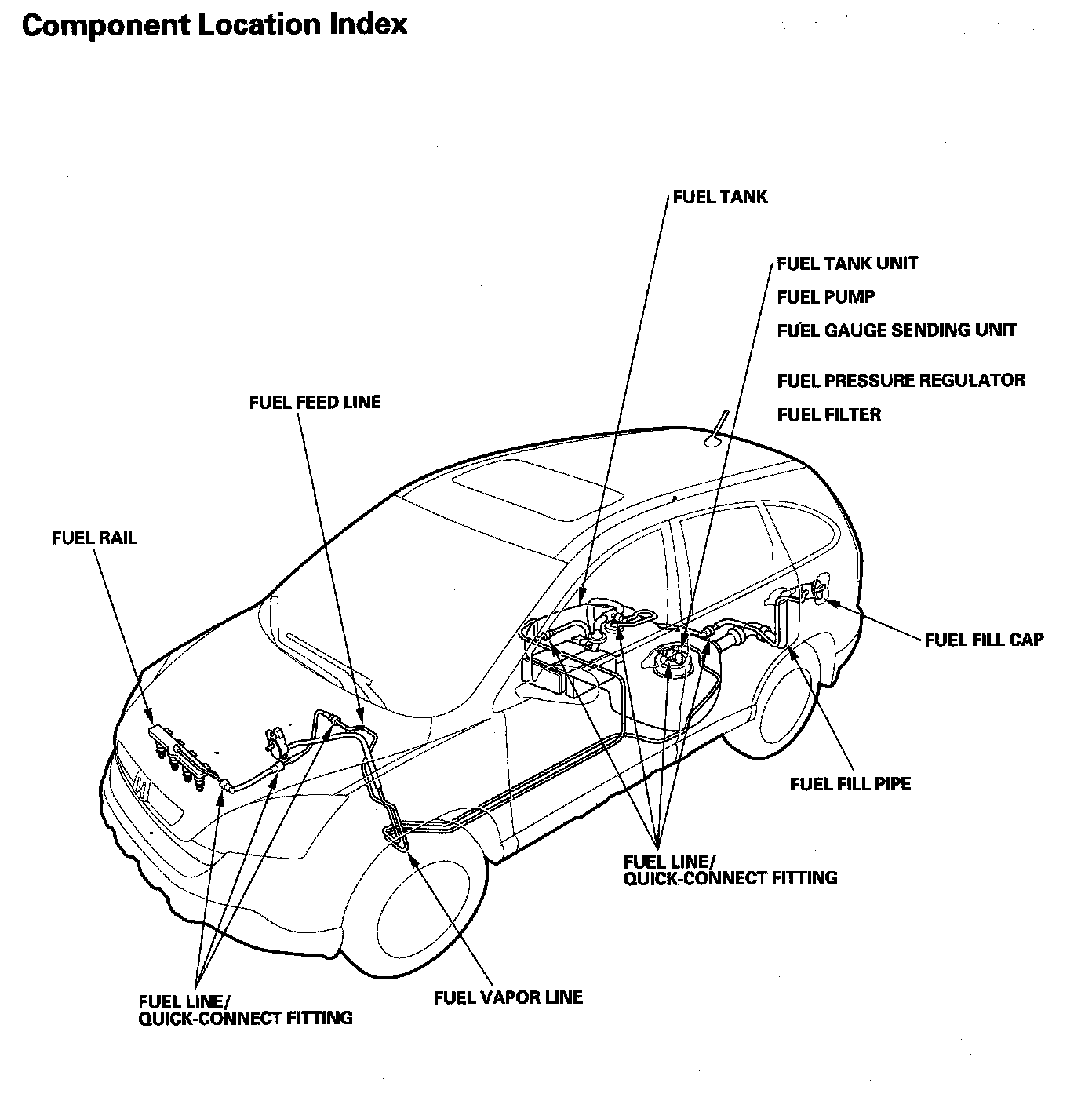

Fuel Supply System Component Location Index:

Fuel Supply System Component Location Index:
