Parking Brake Warning Switch: Testing and Inspection

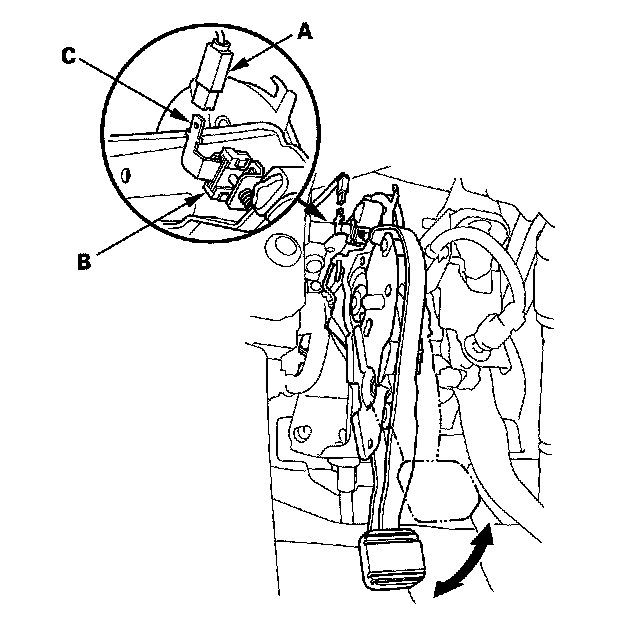

Parking Brake Switch Test1. Disconnect the parking brake switch connector (A) from the parking brake switch (B).
2. Check for continuity between the positive terminal (C) and body ground.
^ With the parking brake pedal pressed, there should be continuity:
^ With the parking brake pedal released, there should be no continuity.
NOTE:
^ If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA system first.
^ If the parking brake switch and fluid level switch are OK, but the brake system indicator does not function, check the VSA system.
