Windshield Washer Hose: Service and Repair

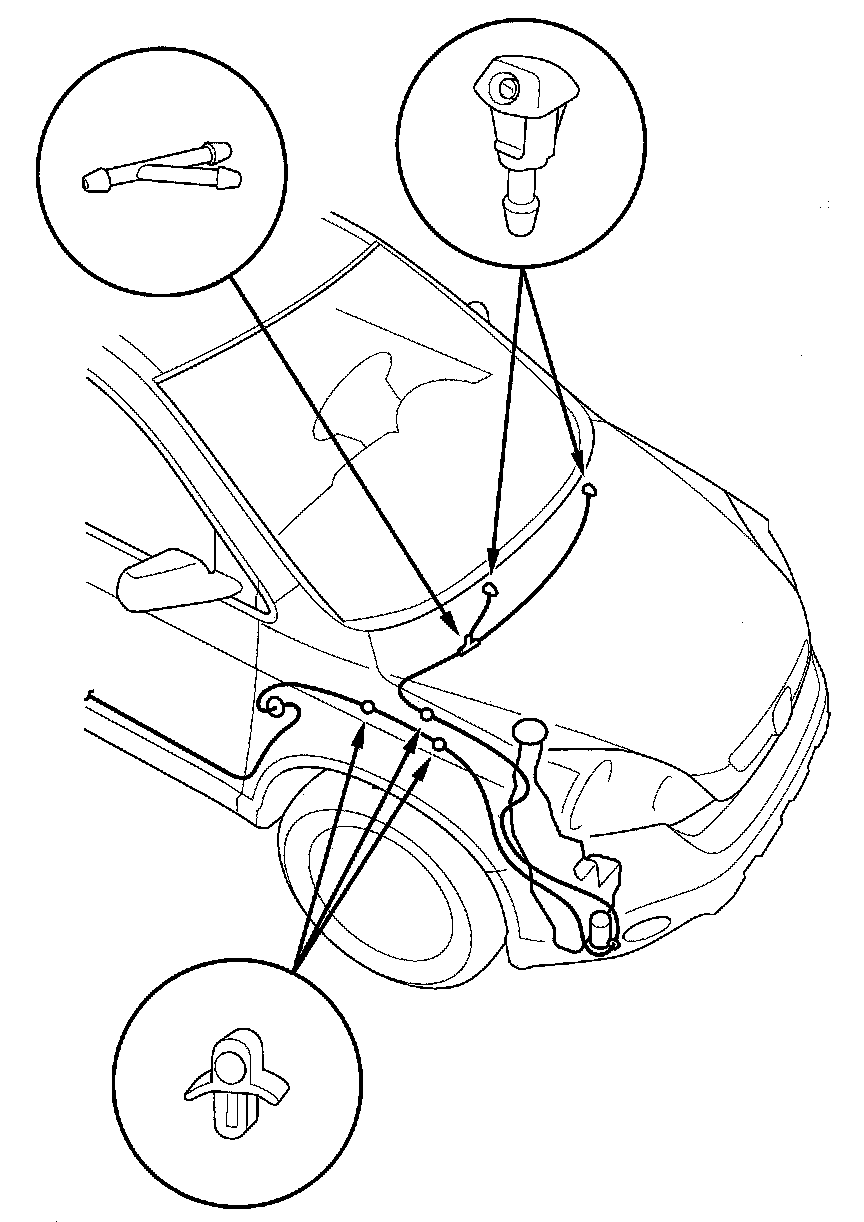

Washer Tube ReplacementWindshield
1. Remove the right inner fender.
2. Remove the washer nozzles and clips, then remove the tubes.
3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
Rear Window
1. Open the tailgate, and lower the rear of the headliner.
2. Remove the washer nozzle and clips, then remove the tube.
3. Install the parts in the reverse order of removal. Take care not to pinch the washer tube. Check the washer operation.
NOTE: Even if the washer tube is pinched between the weatherstrip and the tailgate, the washer may operate, but it may allow water to leak at the weatherstrip. Make sure the tube is aligned, and adjust the tube by twisting if as needed.
