Driver's Dashboard Undercover

Driver's Dashboard Undercover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

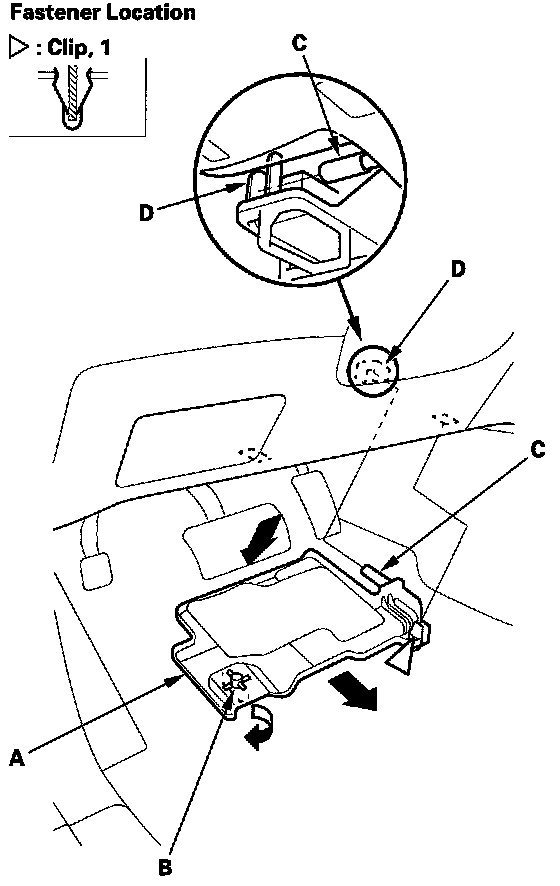

1. Remove the driver's dashboard undercover (A).
1. Turn the lock knob (B) 90°.
2. Gently pull down the rear edge to detach the clip.
3. Pull the cover away to release the pin (C) from the holder (D).

2. Install the undercover in the reverse order of removal, and note these items:
- Check if the clip is damaged or stress-whitened, and if necessary, replace it with a new one.
- Push the clip into place securely.
