Fuel Tank Subharness

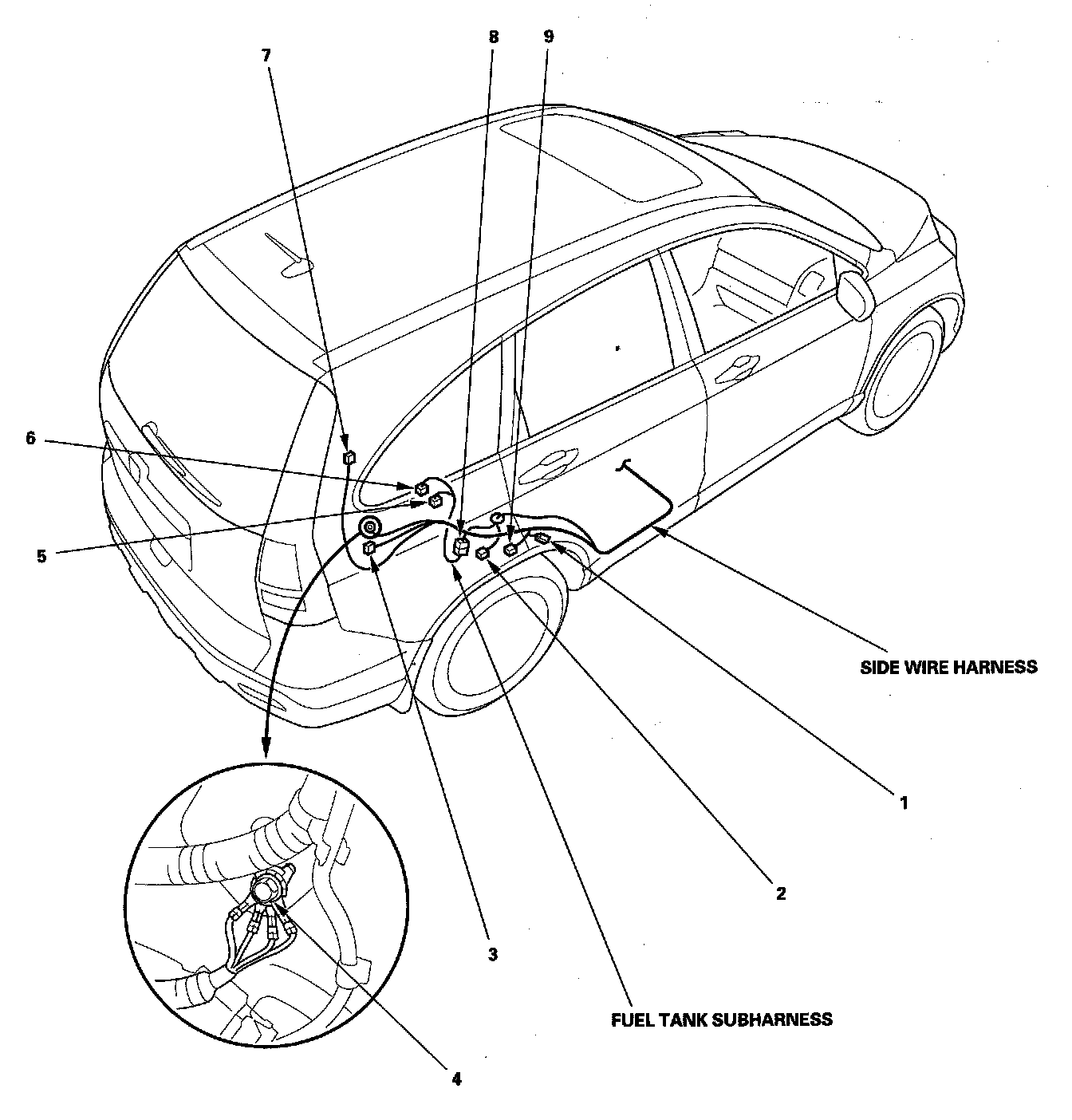

Harness Location View:



Harness Location View:

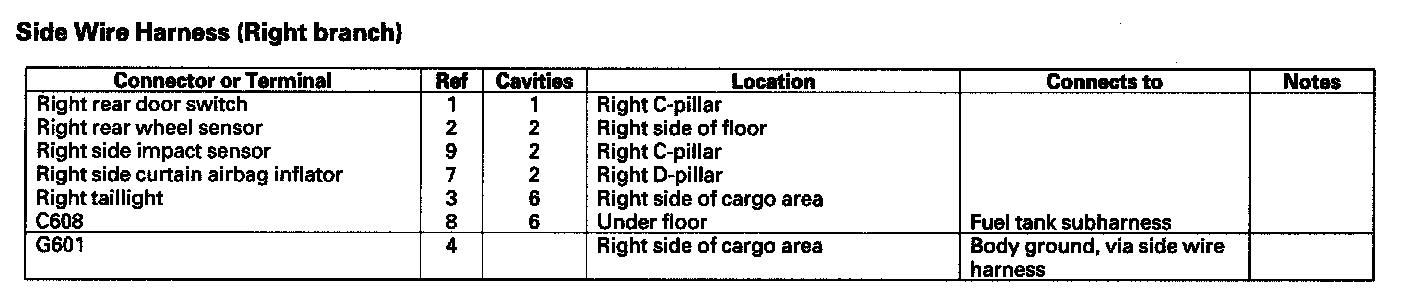

Side Wire Harness (Right Branch):



Side Wire Harness (Right Branch):
