Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

1. Lift the vehicle, and support it with jackstands.




2. Remove the cover (A).




3. Remove the EVAP canister baffle cover (A).




4. Disconnect the hoses (A) and the fuel subharness 6P connector (B).
5. Remove the bolts (C) and the EVAP canister bracket (D).

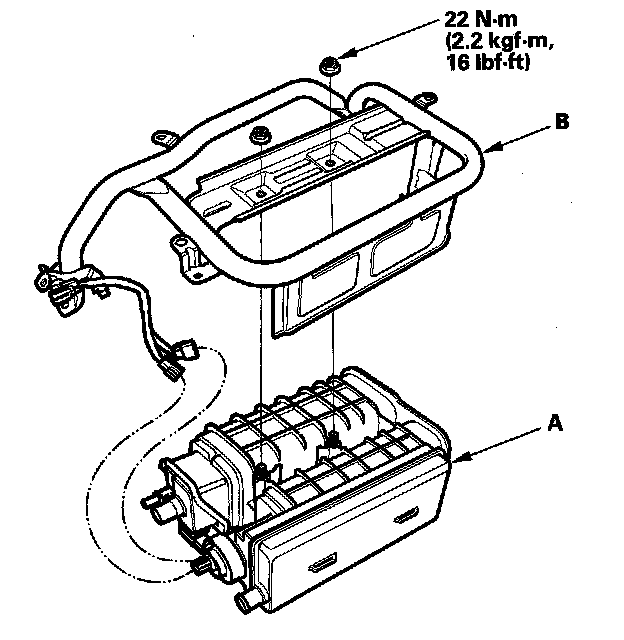

6. Remove the EVAP canister (A) from the EVAP canister bracket (B).




7. Remove the cap (A).
8. Remove the EVAP canister vent shut valve (B).
9. Install the EVAP canister vent shut valve in the new EVAP canister with new O-rings (C).

NOTE: Do not coat the O-rings with oil.

10. Install the parts in the reverse order of removal.
