Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 174

View 151-175: 174

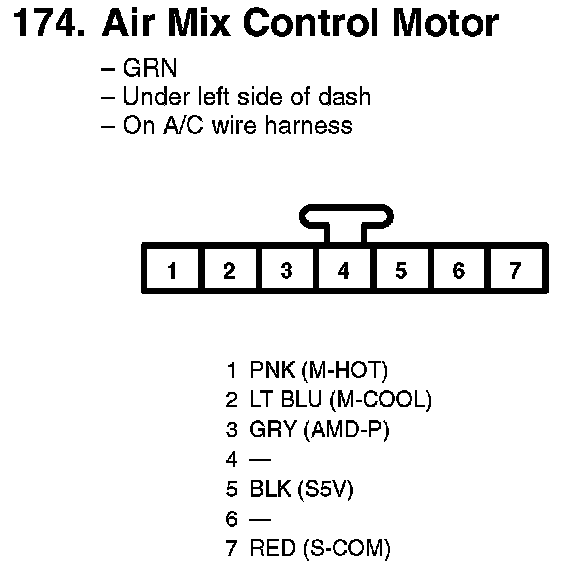

174. Air Mix Control Motor:



179. Mode Control Motor:



180. Recirculation Control Motor:
