Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>

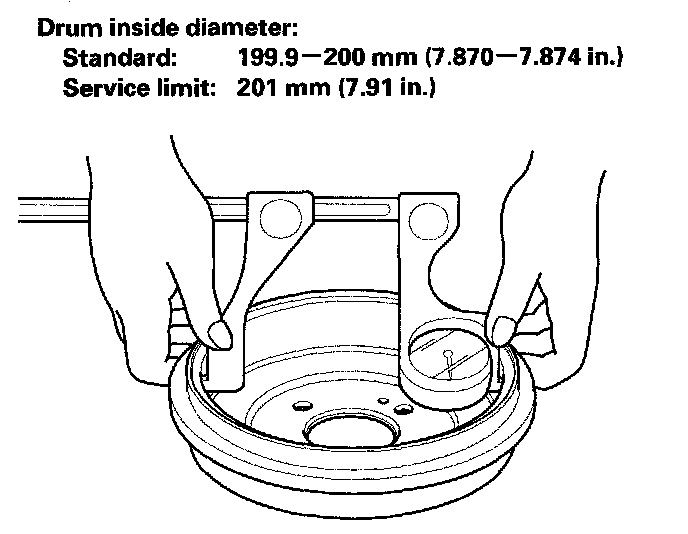

Brake Drum
Brake Drum
Brake Drum
Brake lining thickness:
Standard
4.0 mm (0.16 in.)
Service limit
2.0 mm (0.08 in.)
