Condenser Fan: Service and Repair
Radiator and Fan Replacement1. Drain the engine coolant.

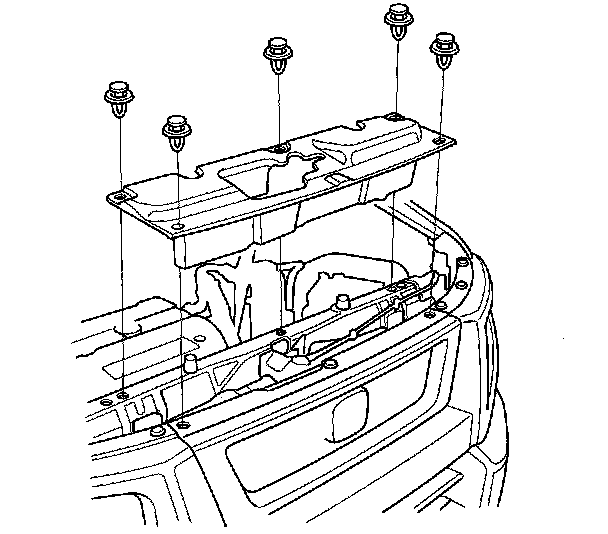

2. Remove the front grille cover.
3. Disconnect the fan motor connectors (A) and engine coolant temperature (ECT) sensor 2 connector (B), then remove the harness clamps (C) and A/C compressor clutch connector (D).
4. Remove the upper brackets and cushions (A), then remove the bulkhead (B).
5. A/T model: Remove the automatic transmission fluid (ATF) cooler hoses.
6. Remove the upper radiator hose and lower radiator hose from the radiator, then pull up the radiator.
7. Remove the fan shroud assemblies and other parts from the radiator.
8. Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
9. Install the bulkhead in the reverse order of removal. Apply touch-up paint to the bulkhead mounting bolts.
10. Fill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open.
