Center Lower Cover

Center Lower Cover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

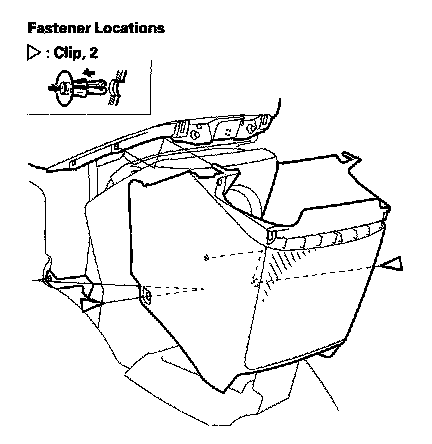

1. Remove the clips (A) and detach the clips (B) then remove the center rear cover (C).




2. SC model: Remove the clips (A), then remove the center rear cover (B).
3. Install the cover the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
