Tailgate Lock Knob Switch Test
Tailgate Lock Knob Switch Test1. Open the tailgate.
2. Remove the tailgate trim panel.

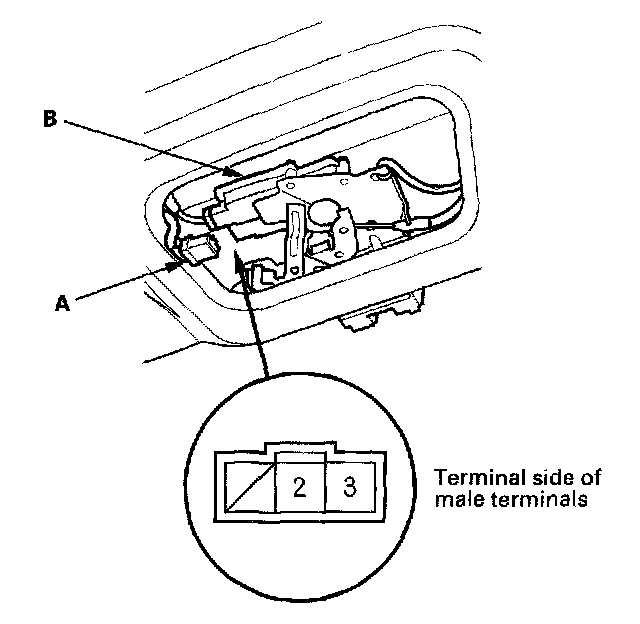

3. Disconnect the 3P connector (A) from the tailgate lock actuator (B)
4. Check for continuity between the terminals.
- There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is in the UNLOCKED position.
5. If the continuity is not as specified, replace the tailgate lock actuator.
