Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
ECM/PCM
ECM/PCM

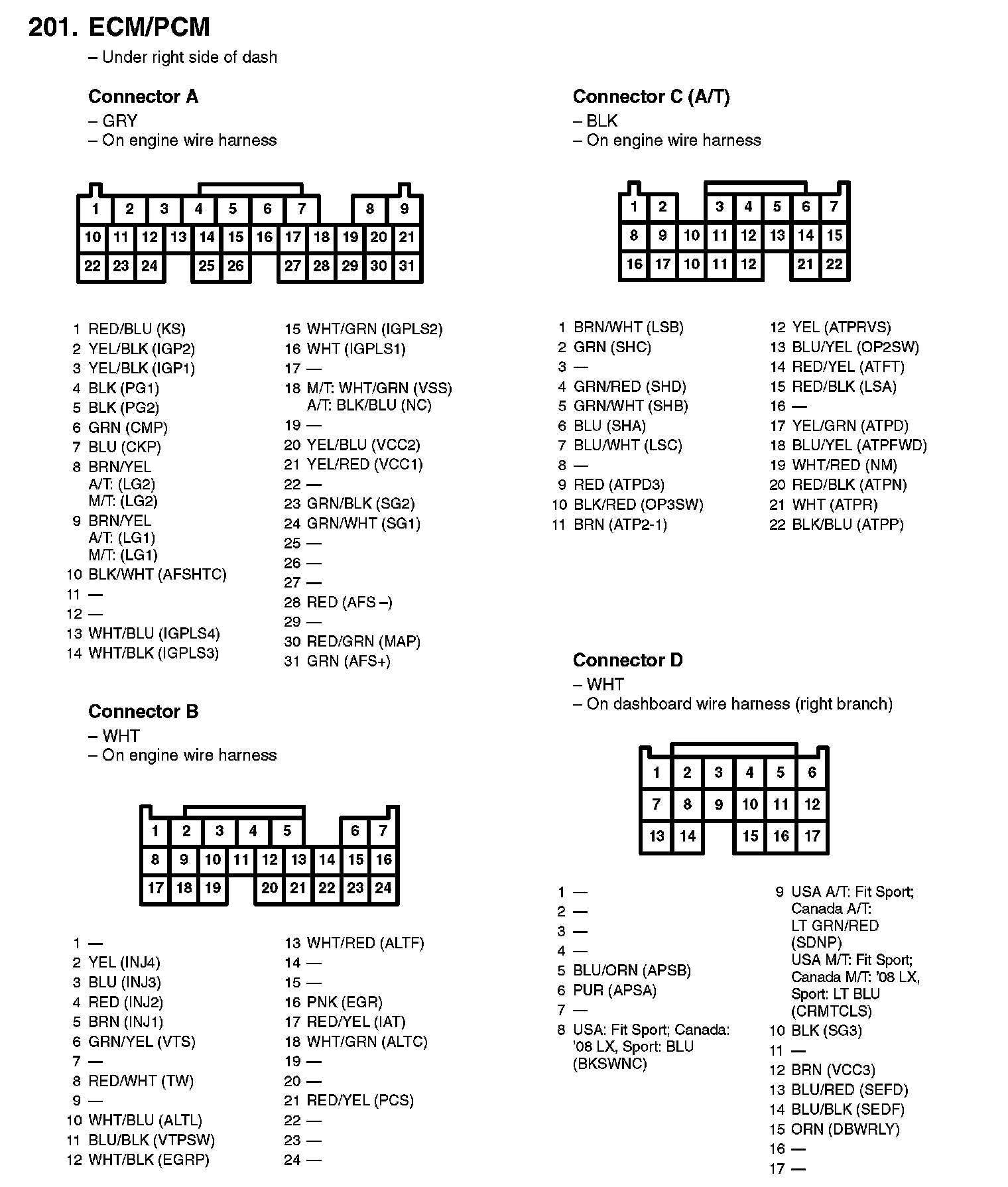

201. ECM/PCM:
201. ECM/PCM:
