Removal and Replacement

Dust and Pollen Filler Replacement

NOTE: The DX (Canada models) is not equipped with a dust and pollen filter.

1. Remove the glove box.

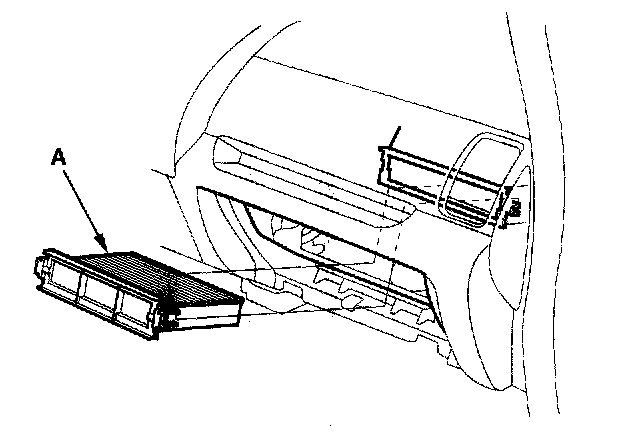

2. Remove the filter lid (A) from the blower unit.

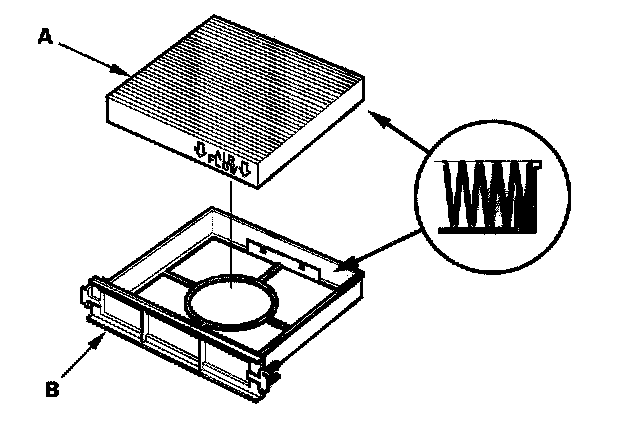

3. Remove the filter (A) from the filter lid (B), and replace it.
4. Install the filter in the reverse order of removal.
