EPS Torque Sensor Sub-Harness
EPS Torque Sensor Sub-Harness

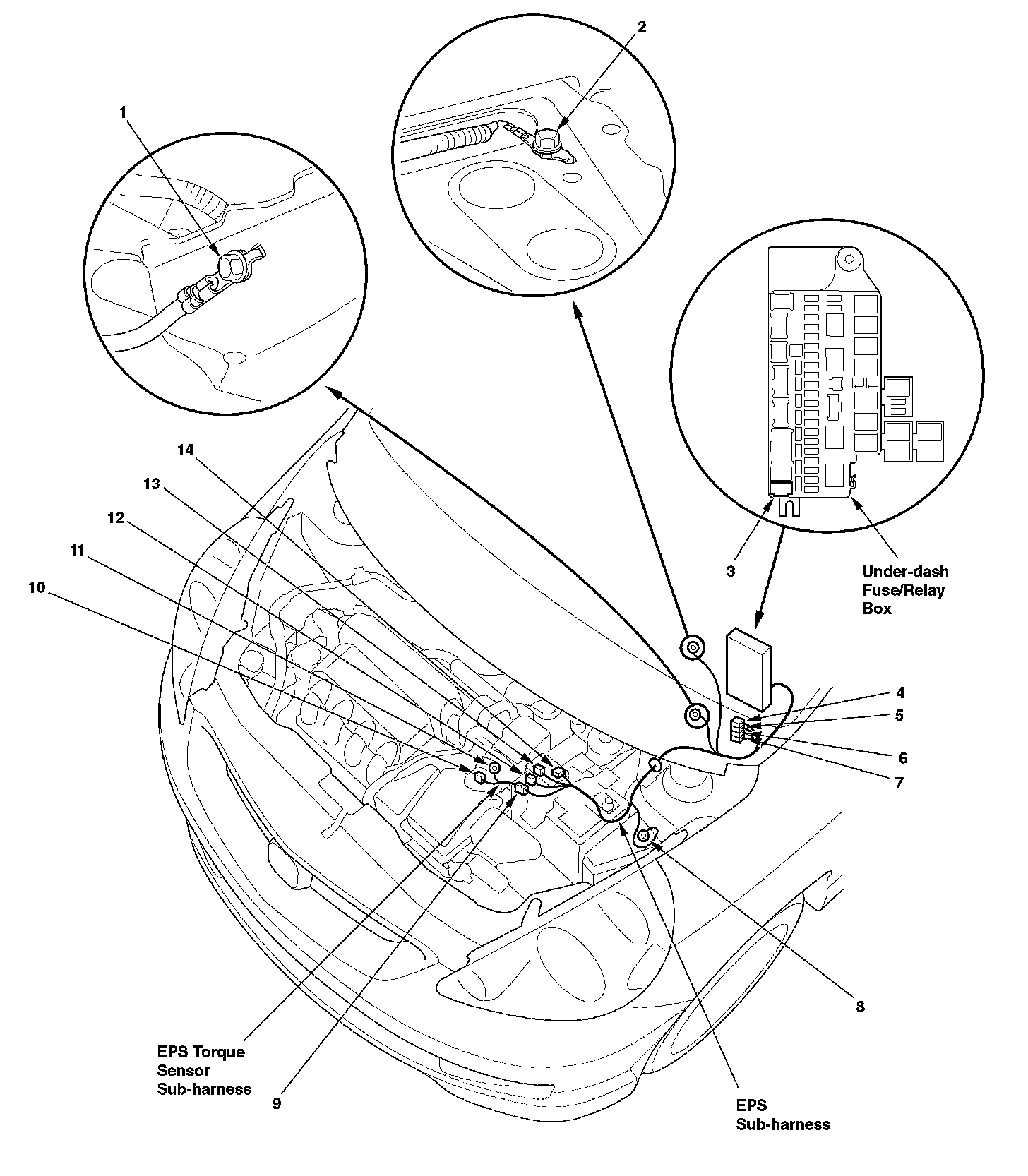

Harness Location View:

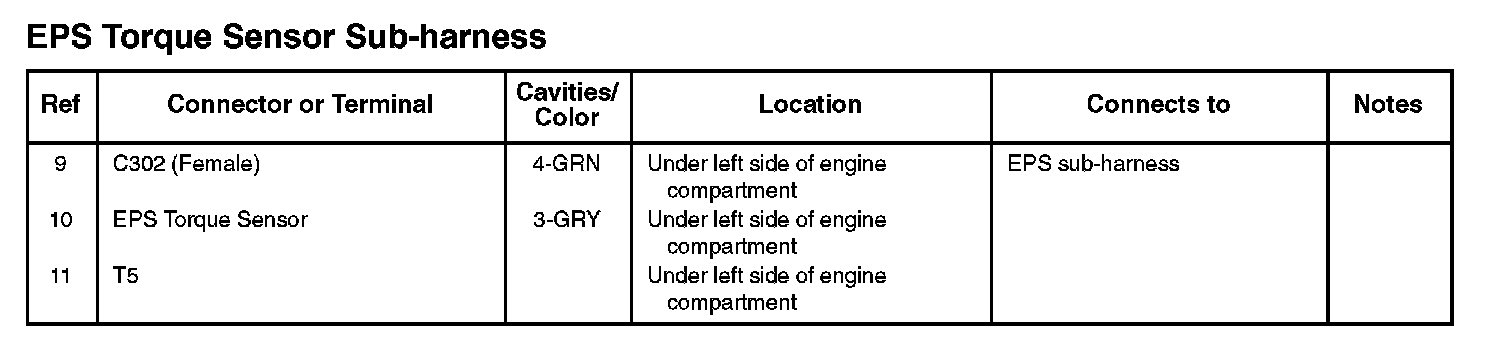

EPS Torque Sensor Sub-harness:
