Accessories and Optional Equipment: Service and Repair

Active Noise Control Unit Removal/Installation

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the headliner and display cover.
- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

1. Remove the audio unit (with navigation) or center pocket (without navigation).

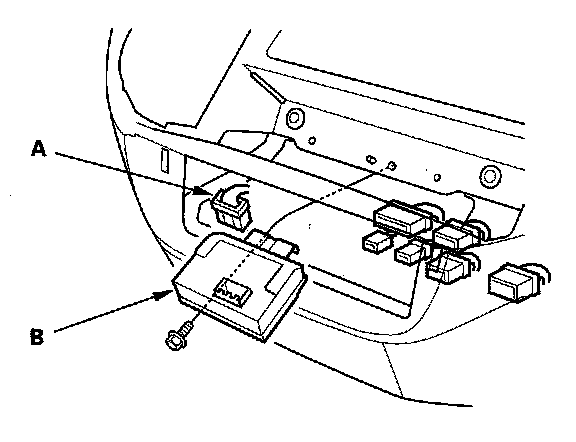

2. Disconnect the connector (A), then remove the bolts and the active noise control unit (B).
3. Install in the reverse order of removal.
