Air Register: Service and Repair

Dashboard Side Vent Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

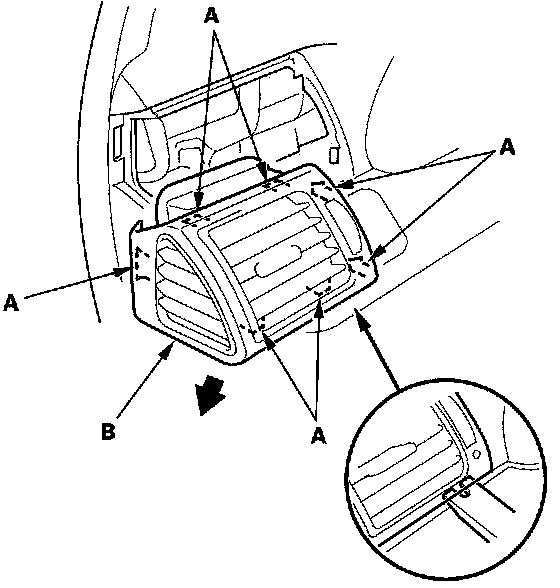

1. Carefully insert a trim tool next to the hooks (A), and release the hooks by prying on the side vent (B). Take care not to scratch the dashboard and related parts.
2. Position the side vent on the dashboard, then push the hooks into place securely.
