License Plate Light Sub-Harness

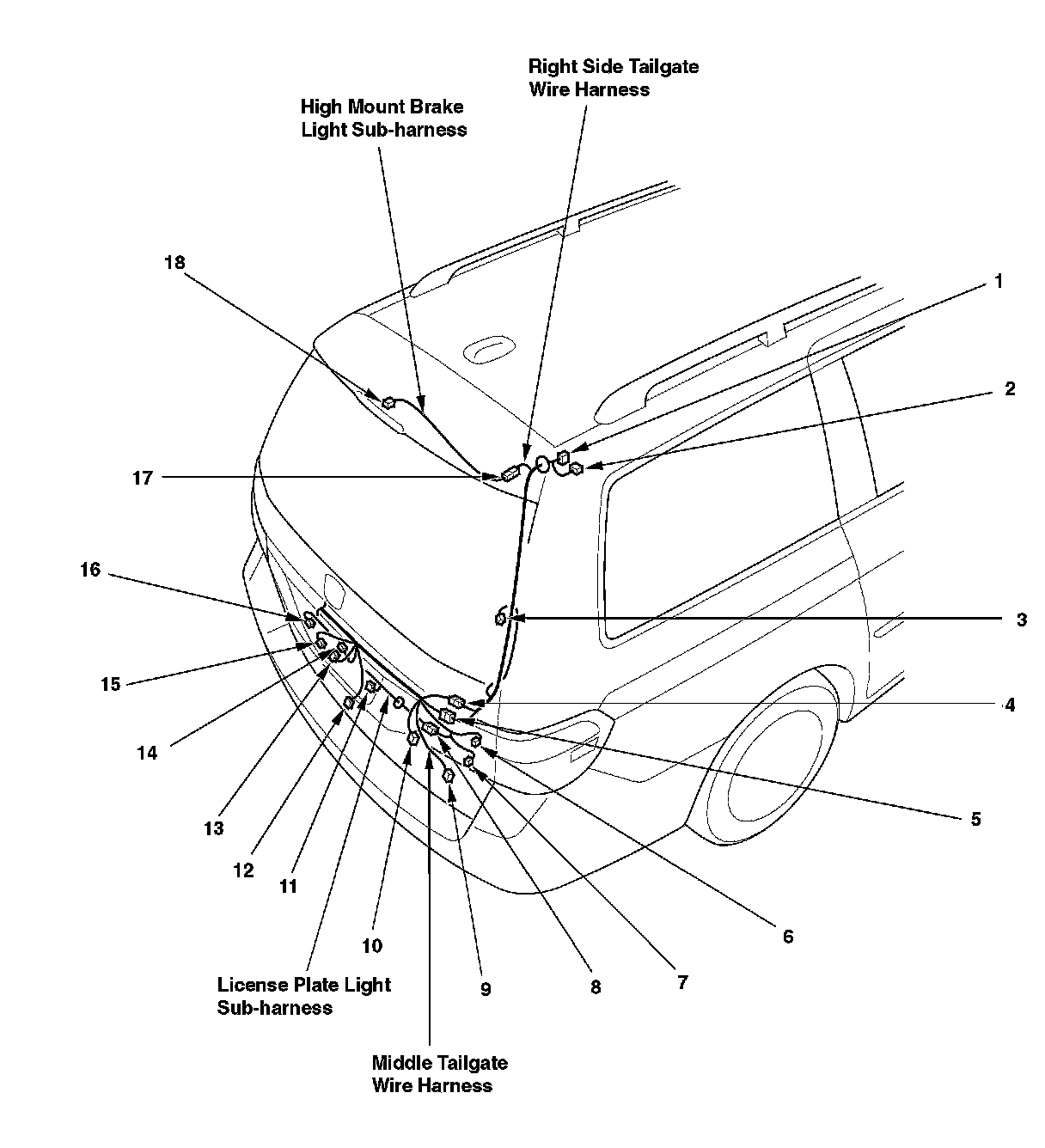

Harness Location View:

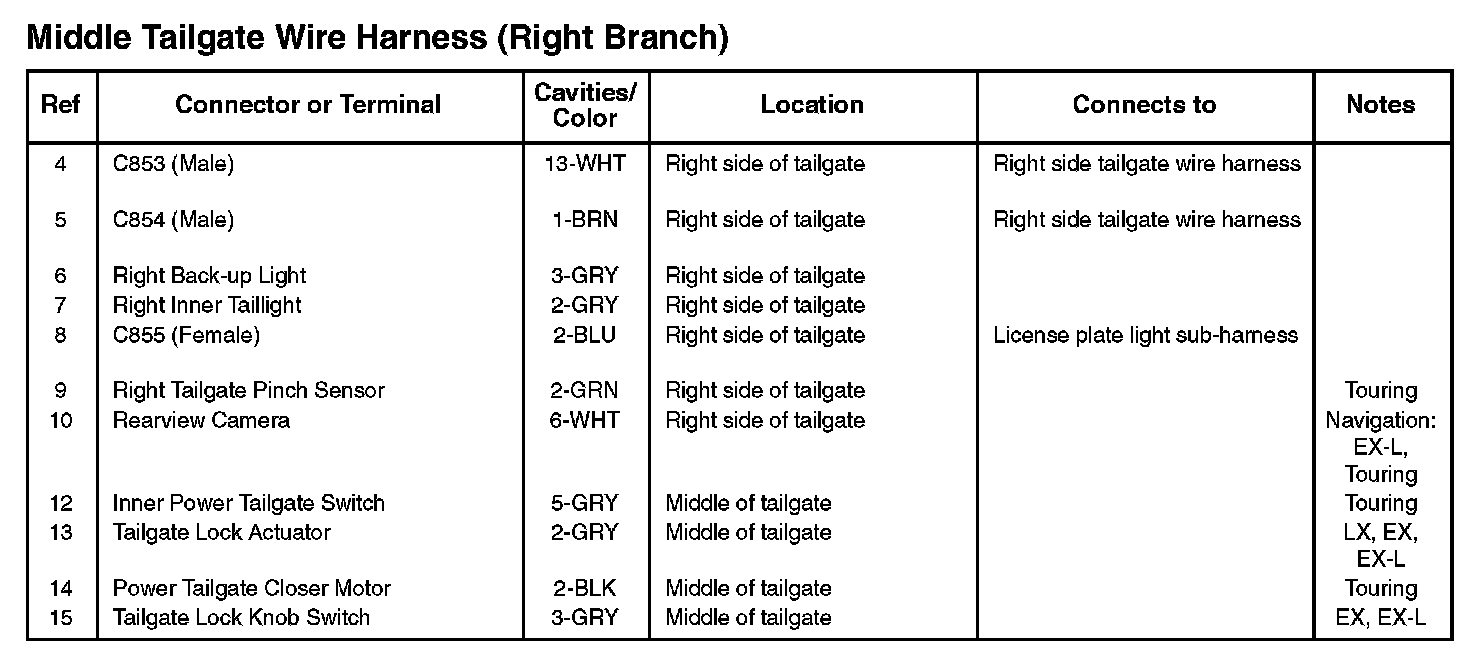

Middle Tailgate Wire Harness (Right Branch):

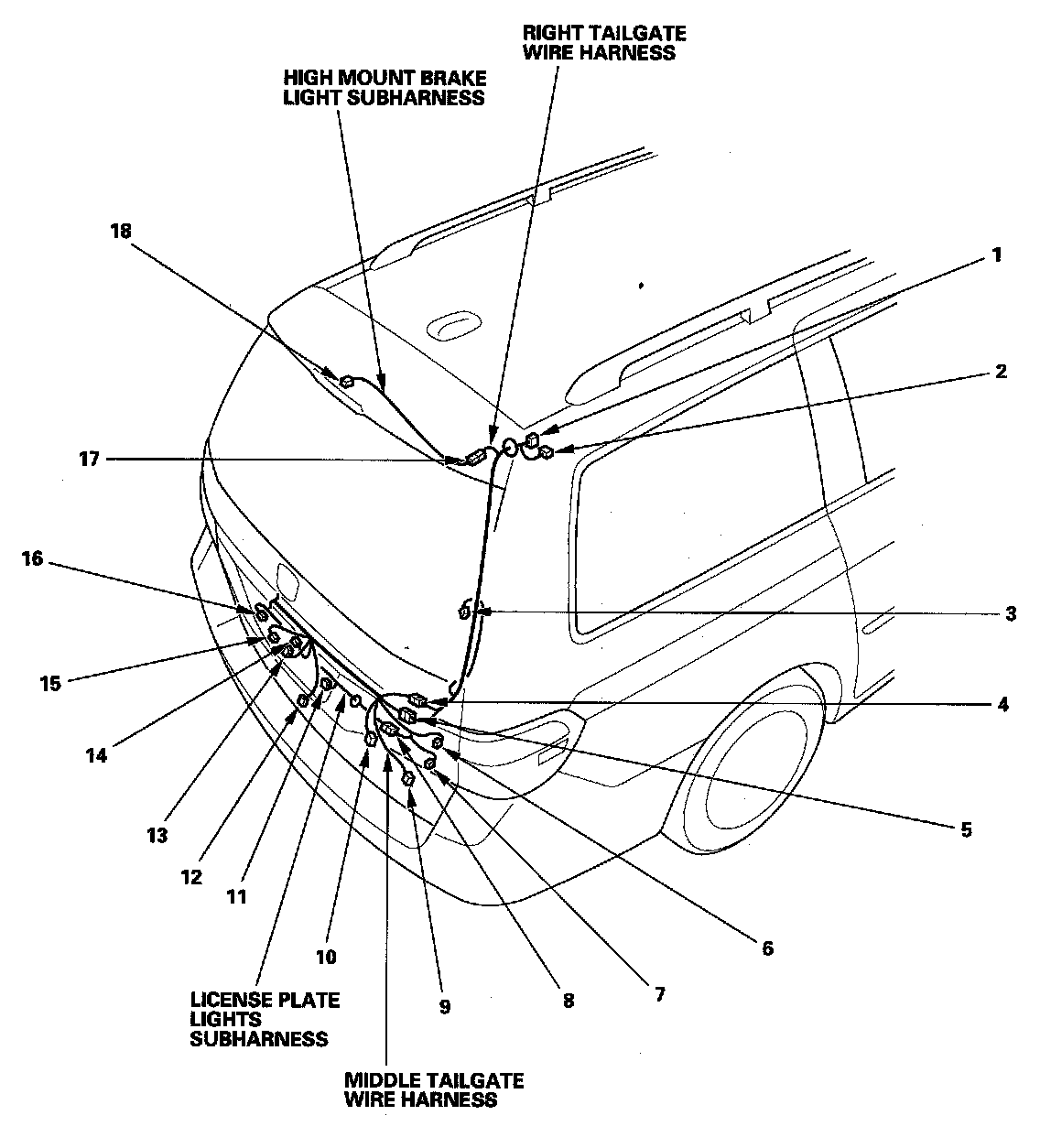

Harness Location View:

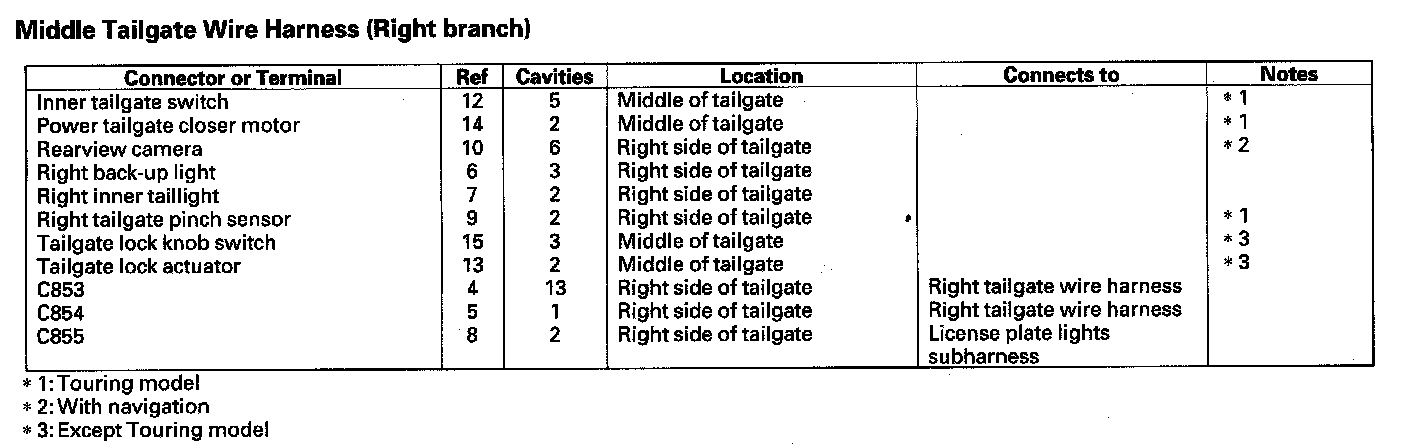

Middle Tailgate Wire Harness (Right Branch):
