Touring Model

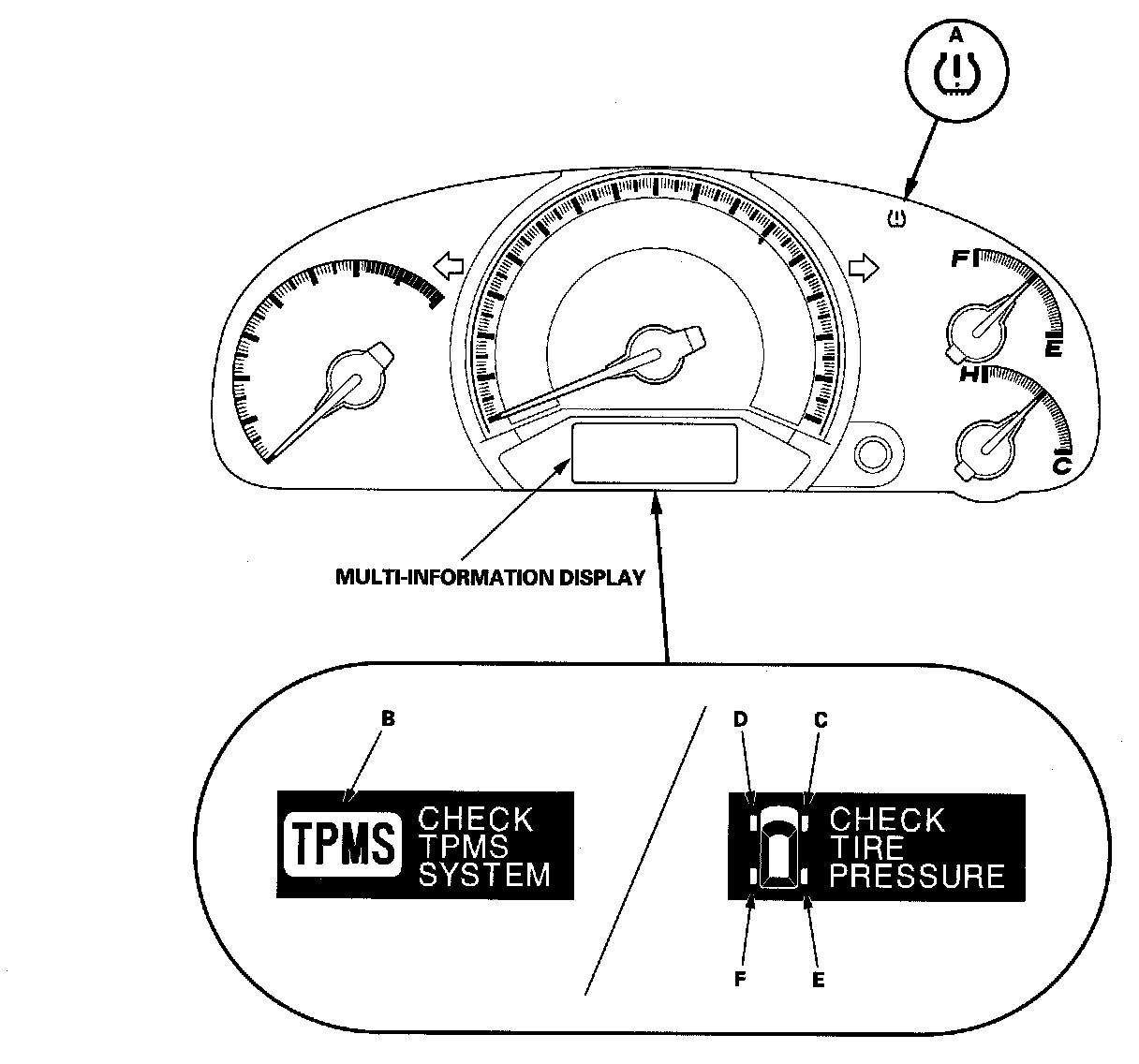

System Indicator Location
The system has six indicators.
^ The low pressure indicator (A).
^ The TPMS indicator (B).
^ The right-front (RF) tire indicator (C).
^ The left-front (LF) tire indicator (D).
^ The right-rear (RR) tire indicator (E).
^ The left-rear (LR) tire indicator (F).
