Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender.

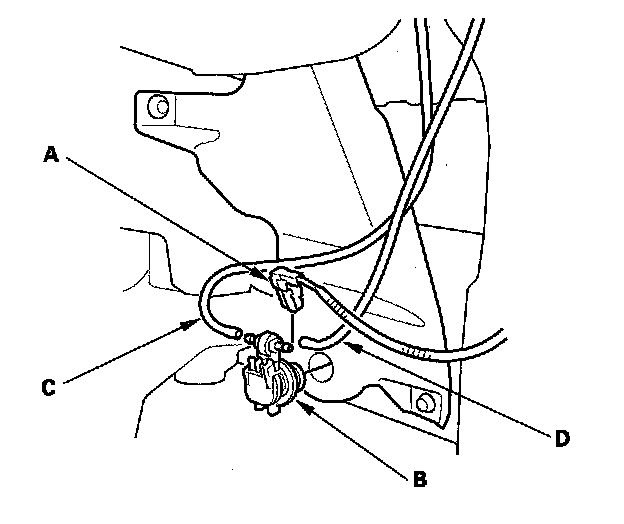

2. Disconnect the 2P connector (A) from the washer motor (B).
3. Disconnect the windshield washer tube (C) and rear window washer tube (D).




4. Remove the bolts, then remove the washer reservoir.
5. Install in the reverse order of removal.
