Rear Bumper: Service and Repair

Rear Bumper Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Have an assistant help you when removing and installing the rear bumper.
- Take care not to scratch the rear bumper and body.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Put on gloves to protect your hands.

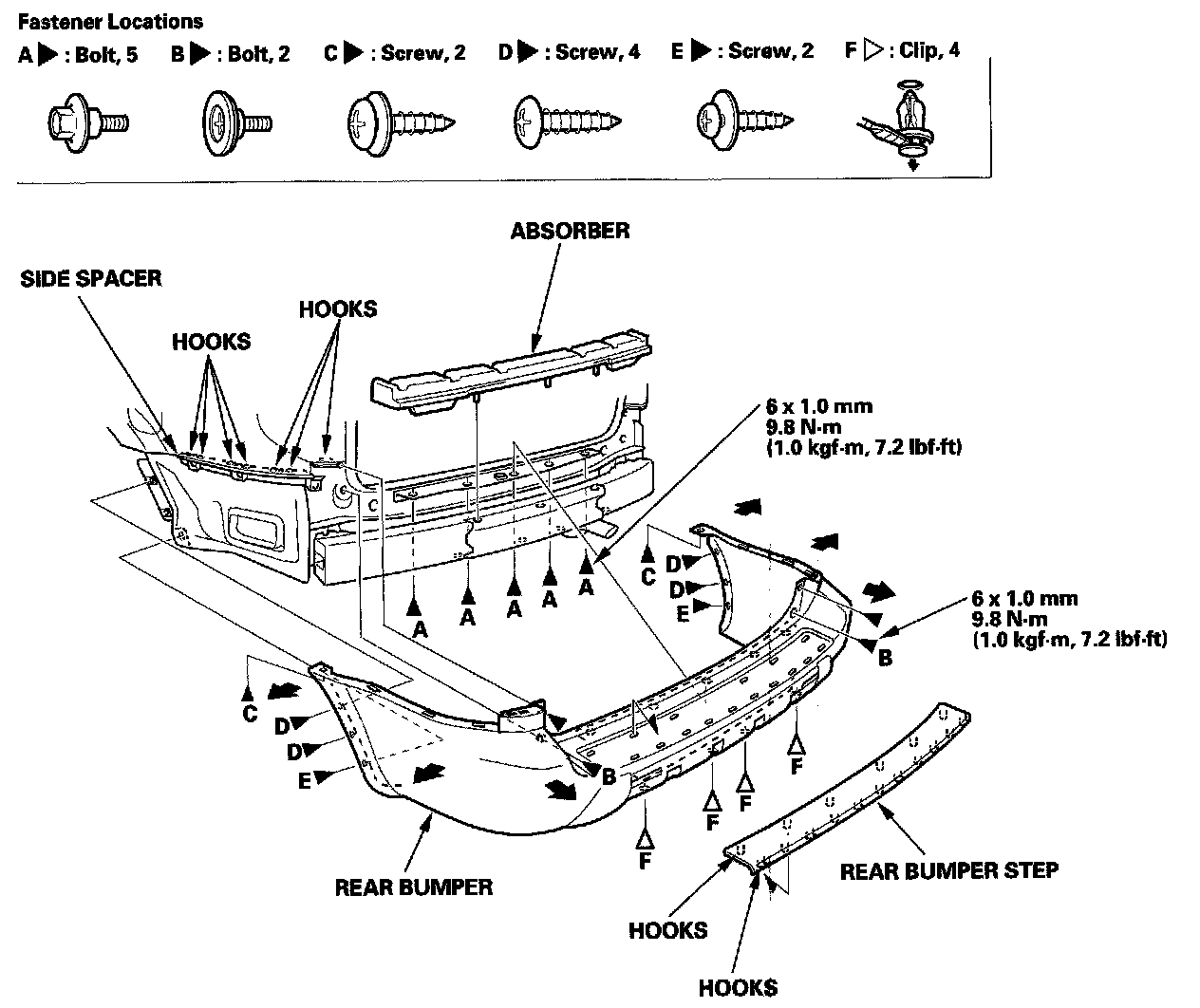

1. Remove the rear bumper as shown.




2. Install the bumper in the reverse order of removal, and note these items:
- Make sure the rear bumper engages the hooks of the side spacers and upper brackets on both sides securely.
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.
