Backup Lamp: Service and Repair

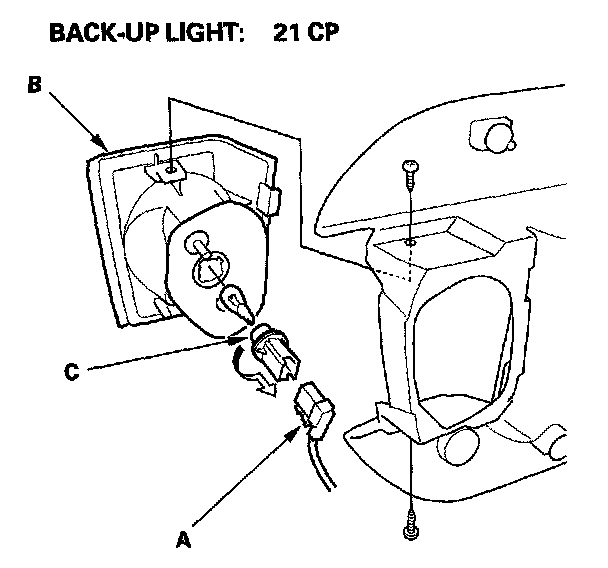

Back-up Light Replacement 1.
Open the tailgate and remove the maintenance lids from the tailgate.
2.
Disconnect the 2P connector (A) from the back- up light (B).
3.
Turn the bulb socket (C)
45 °counterclockwise to remove it from the housing.
4.
Remove the rear license plate trim.
5.
Remove the two screws and the back- up light.
