Switch: Service and Repair
VTM-4 LOCK Button Test/Replacement 1.
Remove the center panel.
2.

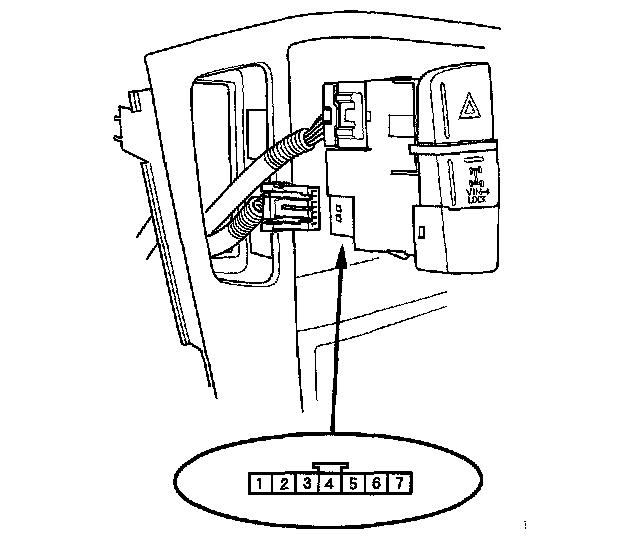

Disconnect the 7P connector from the VTM-4 LOCK button, then remove the VTM-4 LOCK button.
3.

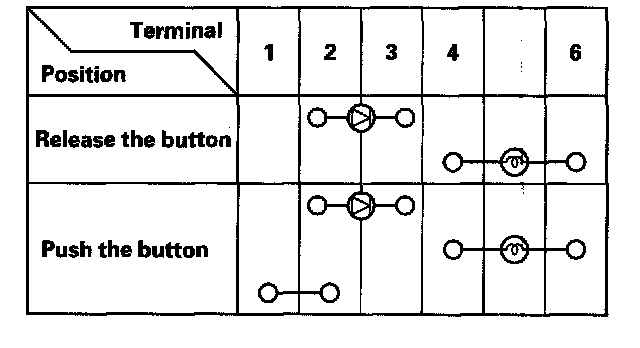

Check for continuity between the terminals in each switch position according to the table. If the switch fails any continuity check, replace the switch.
