Differential Lock: Testing and Inspection

VTM-4 Control Unit Inputs and Outputs
The VTM-4 control unit terminal voltage and measuring conditions for the 4WD system are shown.

NOTE: Measure voltage with the connectors connected.

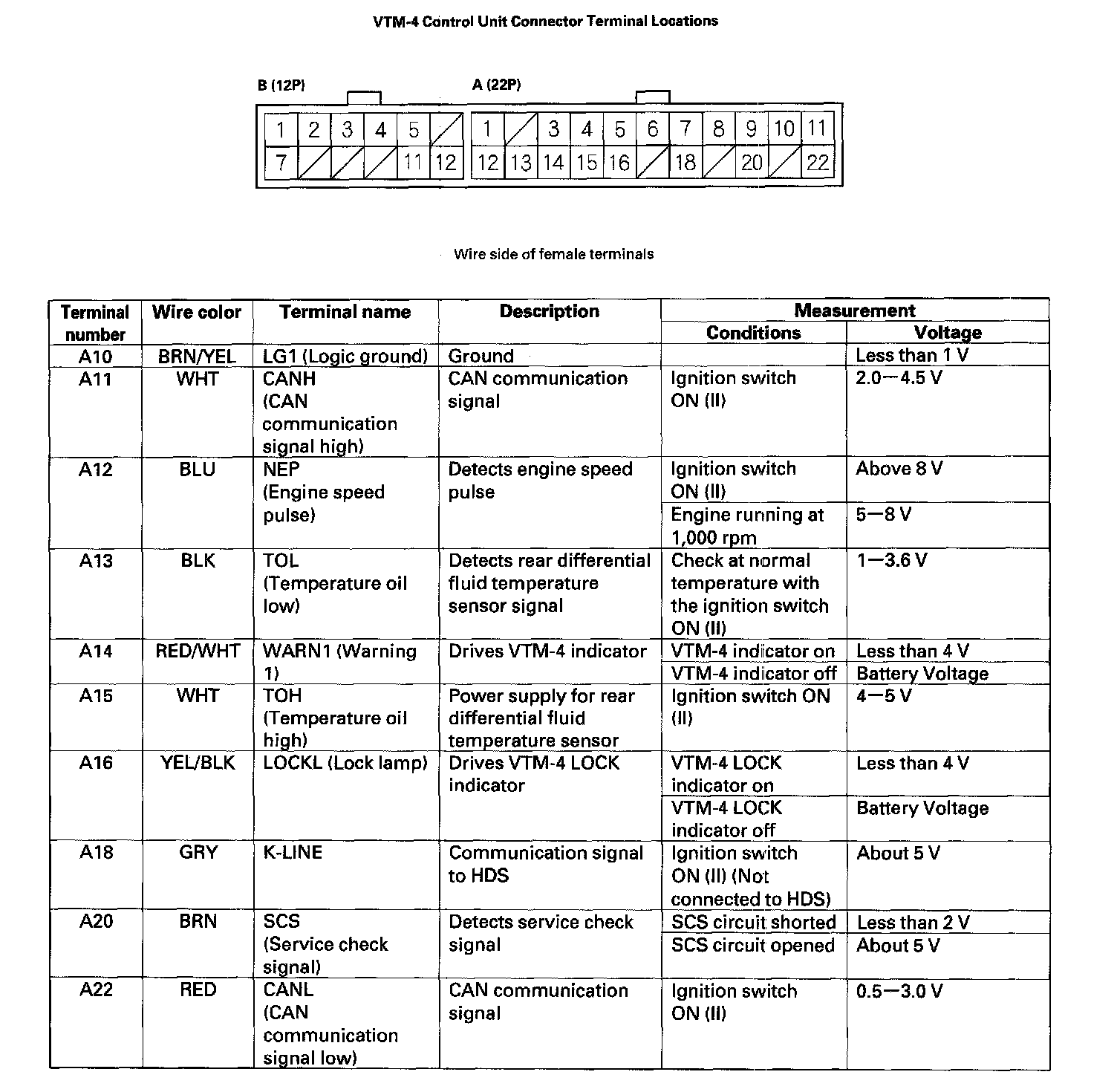

VTM-4 Control Unit Inputs and Outputs:

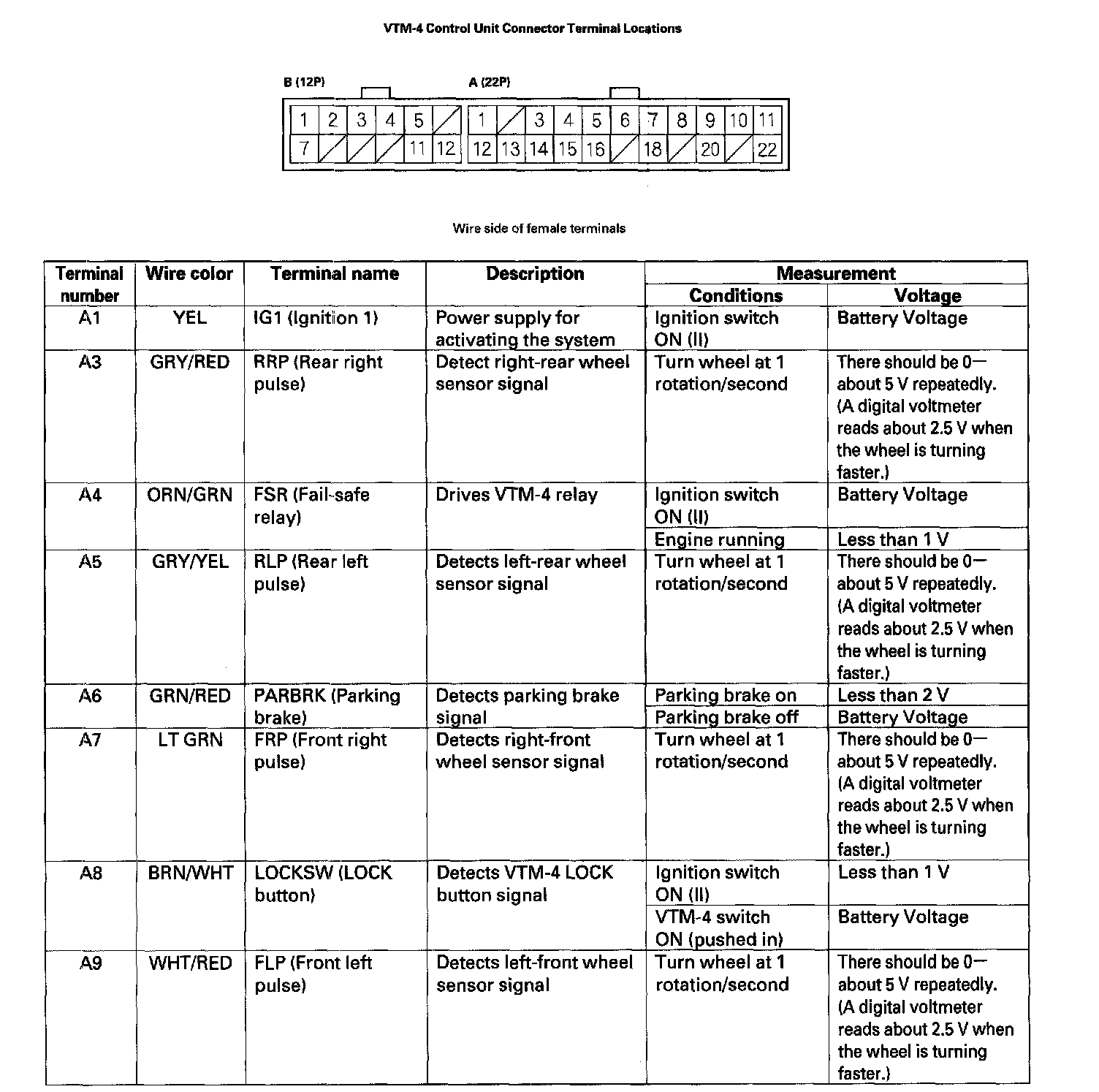

VTM-4 Control Unit Inputs and Outputs (Part 2):

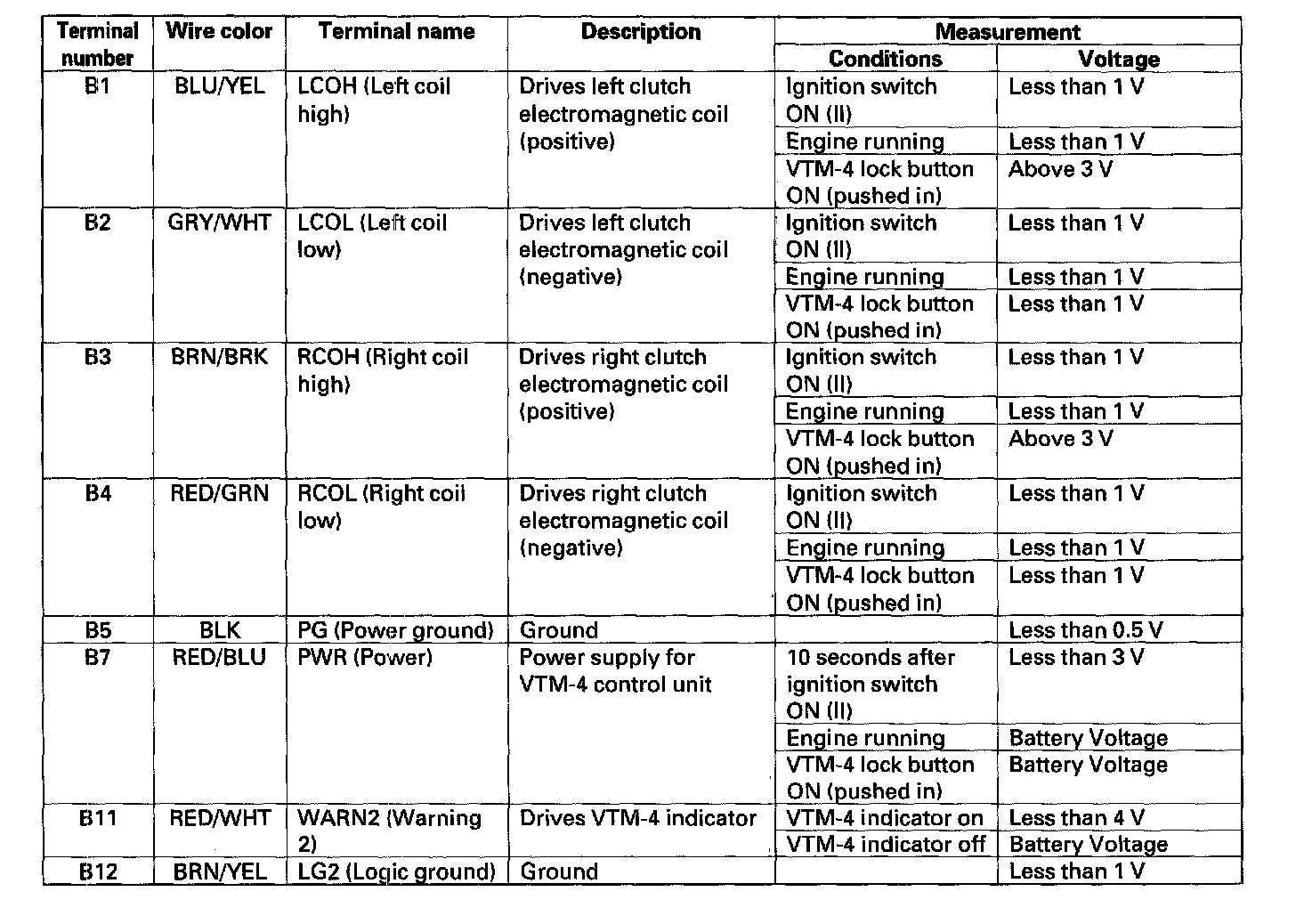

VTM-4 Control Unit Inputs and Outputs (Part 3):
