Overhaul

Backlash Inspection

NOTICE: Connecting battery voltage to either the right or left clutch electromagnet coils for more than 3 minutes will damage the rear differential.

1. Install the left rear driveshaft.

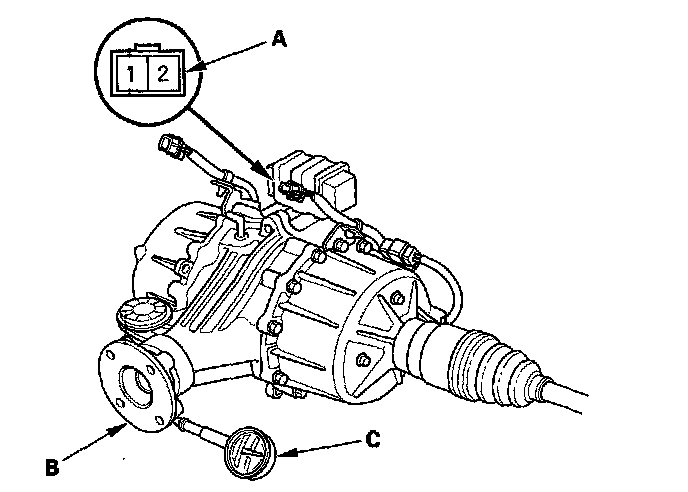

2. At the left clutch electromagnetic coil side, connect the left clutch electromagnetic coil 2P connector (A) terminal No. 1 to the battery positive terminal, and connect the terminal No. 2 to the battery negative terminal.
3. Check the backlash of the companion flange (B) with a dial indicator (C).

Standard: 1.23-2.38 mm (0.048-0.094 in.)

4. If the backlash is not within the standard, replace the rear differential.
