Security Indicator Test

Security Indicator Test/Replacement

USA: RTS and RTL, Canada: EXL

1. Remove the driver's door panel.

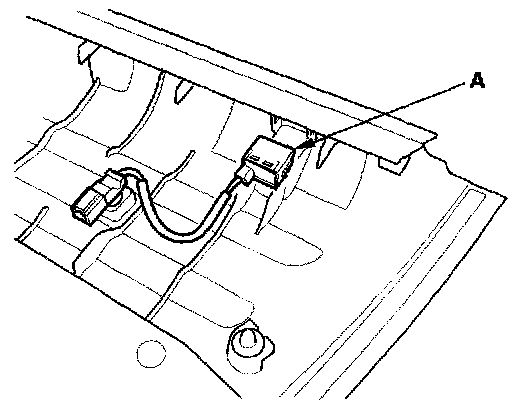

2. Remove the security indicator (A) from the door panel.
3. Test the indicator by connecting battery power to the No. 2 terminal and ground to the No.1 terminal of the indicator. The indicator should be indicate.
4. If the indicator does not indicate, replace the indicator.
