Traction Control Module: Testing and Inspection

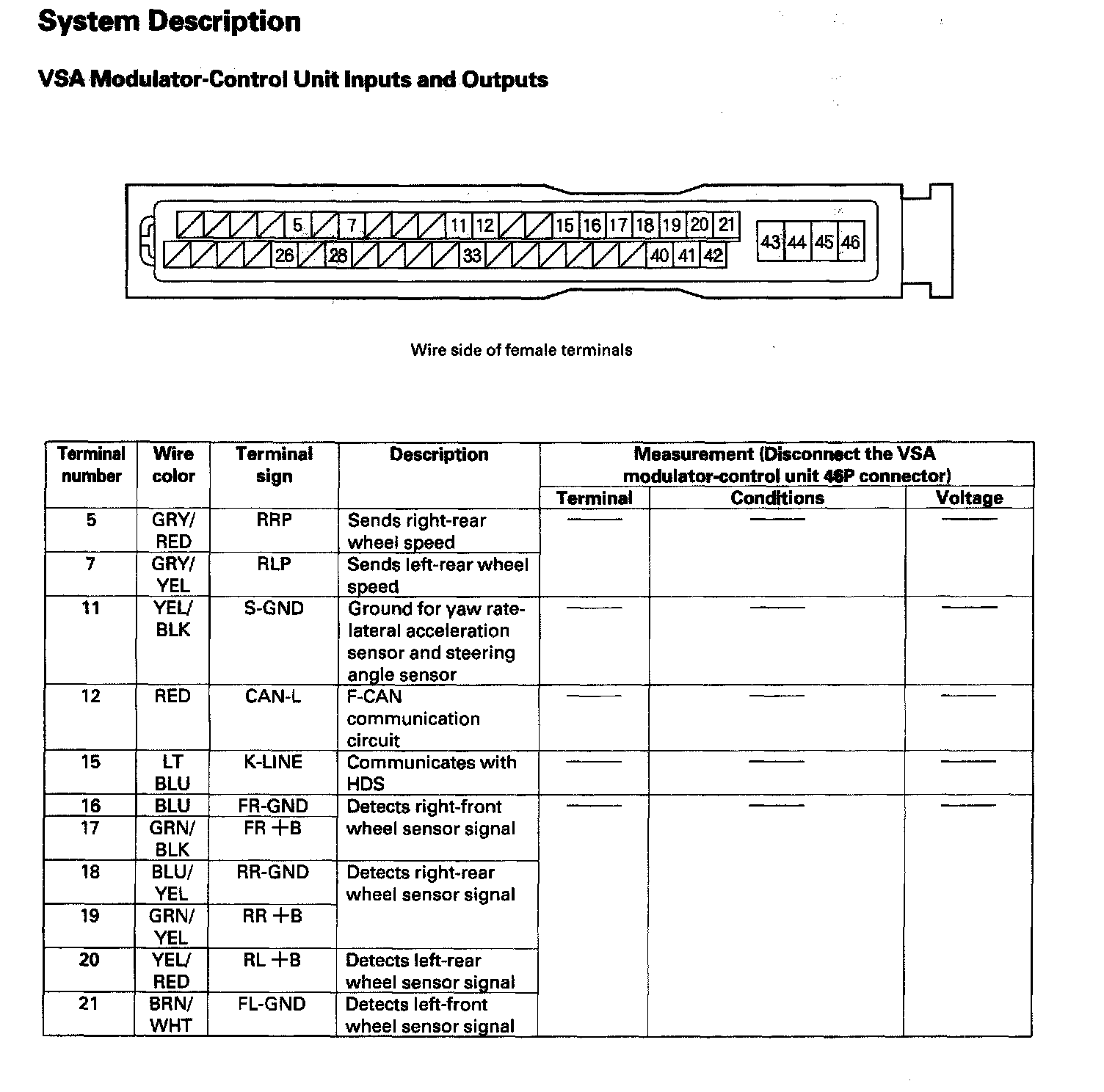

VSA Modulator-Control Unit Inputs and Outputs (Part 1):



VSA Modulator-Control Unit Inputs and Outputs (Part 2):
