Traction Control Switch: Testing and Inspection

VSA Off Switch Test

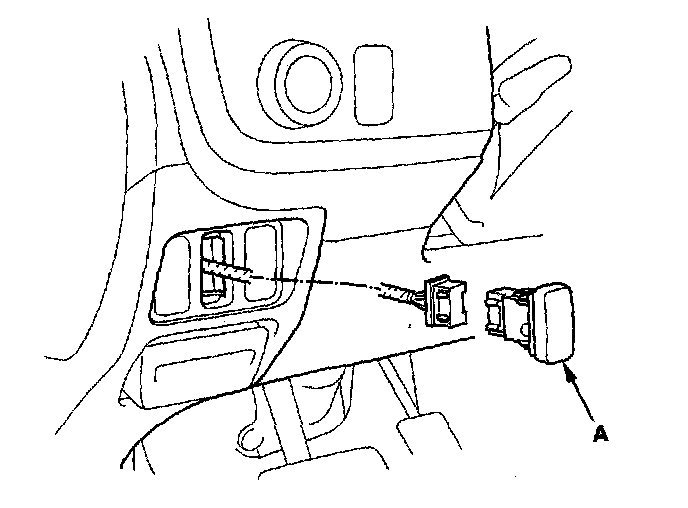

1. Remove the VSA off switch (A) from the switch panel.

2. Disconnect the VSA off switch 6P connector.

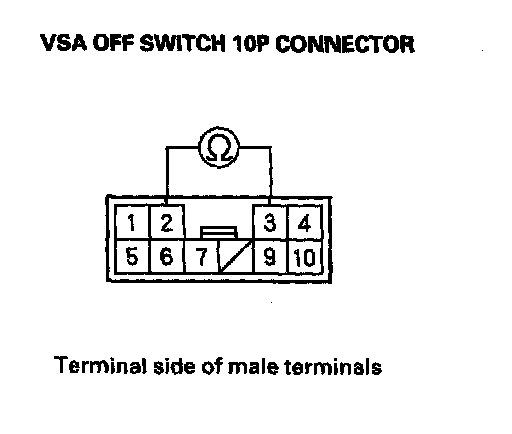

3. Check for continuity between VSA off switch connector terminal No. 2 and No. 3. There should be continuity when the switch is pushed.

VSA Off Switch 10P Connector:

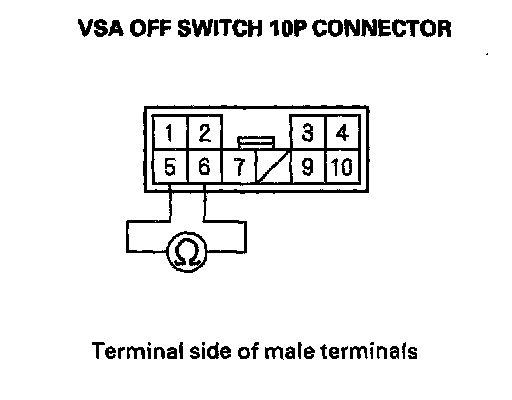

4. Check for continuity between VSA off switch connector terminal No. 5 and No. 6. There should be continuity at all times.
