Rear Accessory Power Socket Test/Replacement
Rear Accessory Power Socket Test/ReplacementNOTE: Before troubleshooting the rear accessory power socket, perform the multiplex integrated control system troubleshooting using B-CAN System Diagnosis Test Mode A.
1. Remove the console rear trim.
2. Disconnect the 2P connector (A) from the accessory power socket (B).
3. Inspect the connector terminals to sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, Go to step 4.
4. Turn the ignition switch to ACC (I).
5. Check for voltage between the power accessory socket 2P connector No. 2 terminal and body ground. There should be battery voltage.
- If there is battery voltage, Go to step 6.
- If there is no battery voltage, check for:
- Blown No. 9 (10 A) fuse in the under-dash fuse/ relay box.
- Faulty rear accessory power socket relay.
- Poor ground (G401).
- An open in the wire.
6. Check for continuity between the No. 1 terminal and body ground. There should be continuity.
- If there is continuity, Go to step 7.
- If there is no continuity, check for:
- Poor ground (G501).
- An open in the wire.

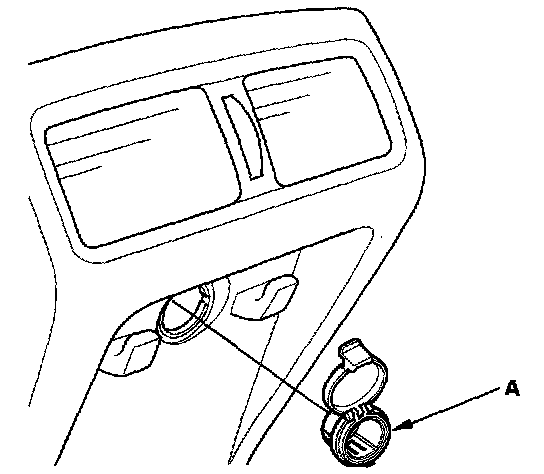

7. Remove the socket (A).

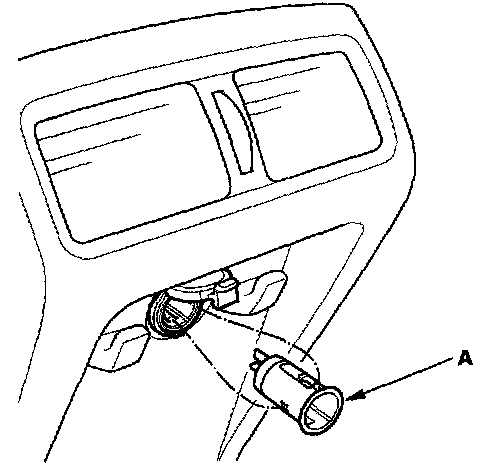

8. Remove the housing (A) from the panel.
9. Install the power socket in the reverse order of removal.
