Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Locations

Control Module HVAC: Locations

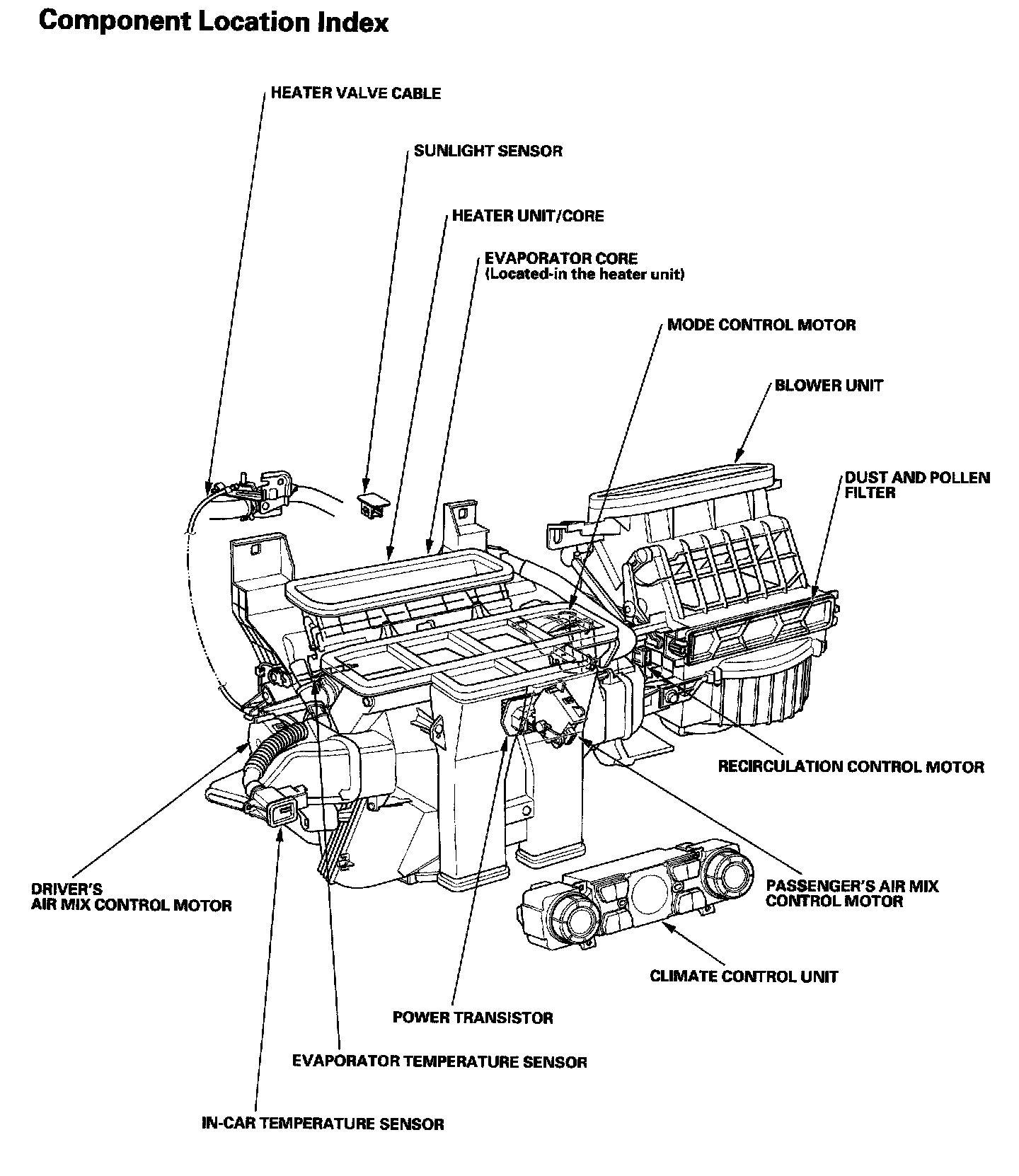

Heating/Air Conditioning Component Location Index:



Climate Control Component Location Index:
