Alignment

Caster
Caster angle 1° 53' ± 1°


Camber
Camber angle:
Front -0° 30' ± 1°
(Maximum difference between the front right and left side 1° 00')
Rear -0° 30' ± 45'


Front Toe-in
Front toe-in 0 ± 2 mm (0 ± 0.08 in.)


Rear Toe-in
Rear toe-in 0 ± 2 mm (0 ± 0.08 in.)

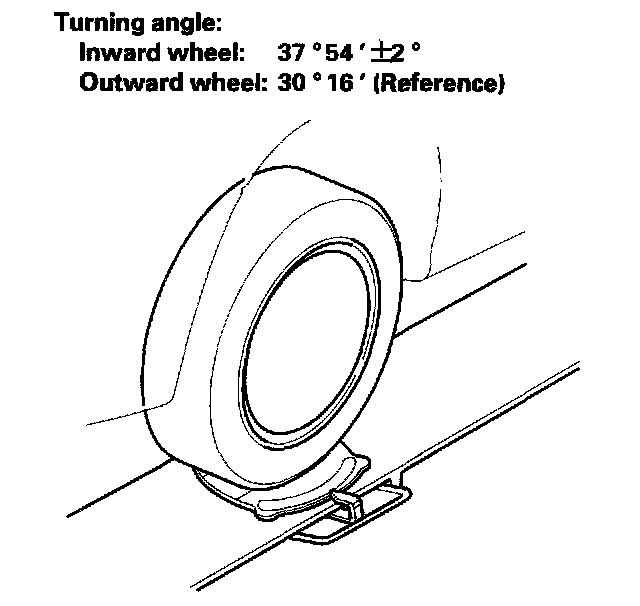

Turning Angle
