Starter Solenoid: Testing and Inspection
Starter Solenoid Test1. Make sure you have the anti-theft codes for the audio unit and the navigation system, then write down the audio presets.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable.

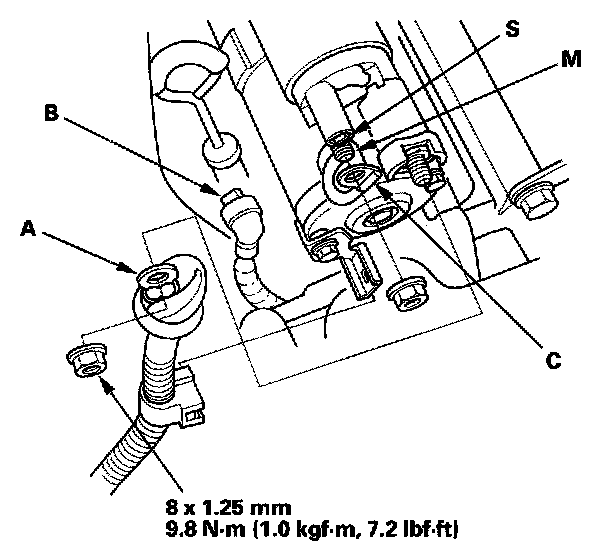

3. Remove the starter cable terminal (A), BLK/WHT wire connector (B), and motor cable (C).
4. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
- If there is continuity, go to step 5.
- If there is no continuity, replace the solenoid.
5. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.
6. Install in the reverse order of removal.
7. Connect the positive cable to the battery first, and then connect the negative cable.
8. Enter the anti-theft codes for the audio unit and the navigation system, then enter the audio presets.
9. Do the power window control unit reset procedure.
10. Set the clock.
