Switch: Testing and Inspection

VTM-4 LOCK Button Test/Replacement
1. Remove the instrument panel.
2. Disconnect the 5P connector (A) from the VTM-4 lock button (B), then remove the VTM-4 lock button.

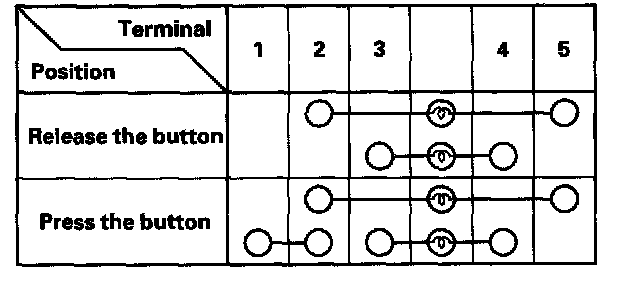

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity check is not as specified, replace the bulbs (C) or the VTM-4 lock button.
