Differential Lock: Testing and Inspection

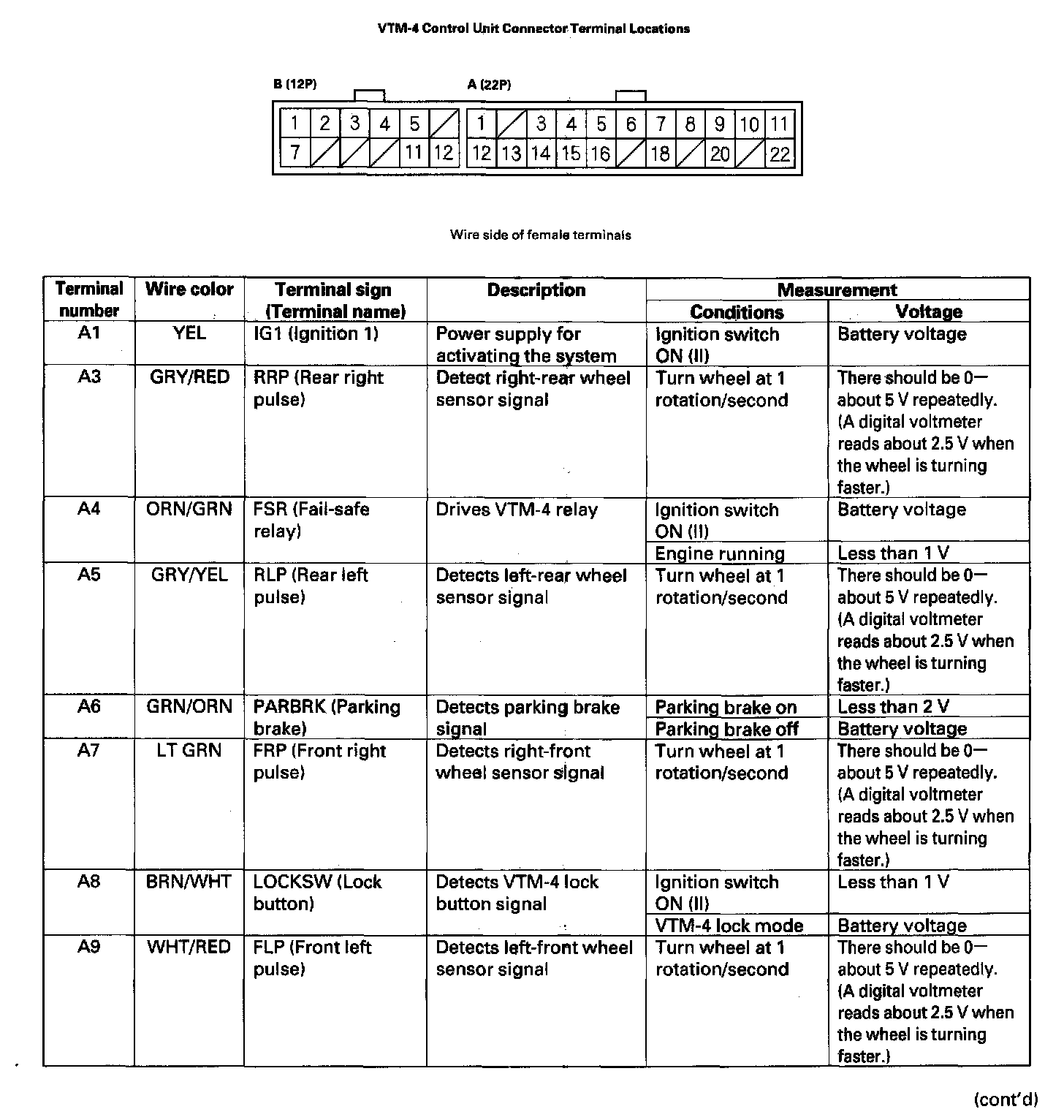

VTM-4 Control Unit Inputs and Outputs (Part 1):

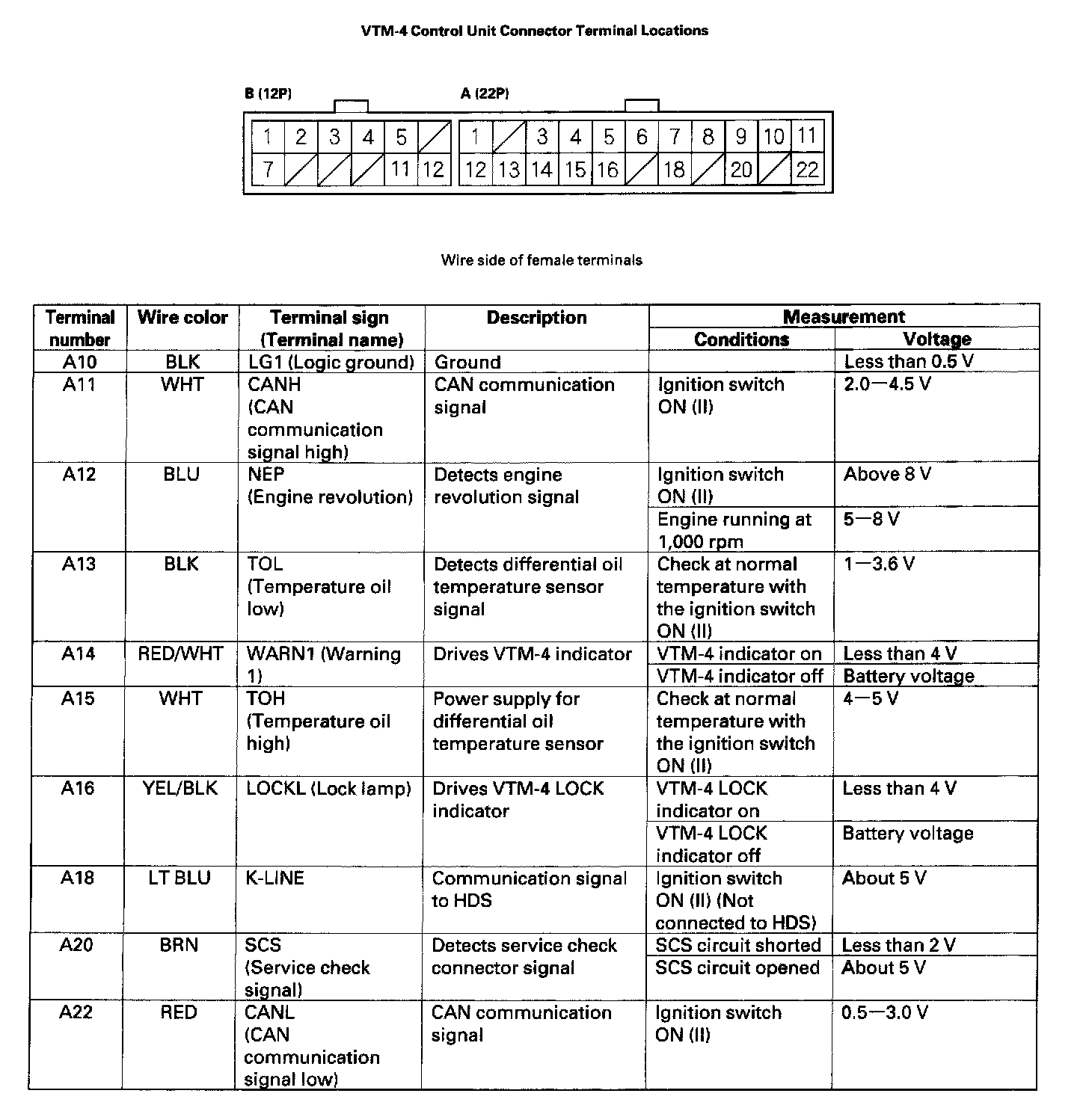

VTM-4 Control Unit Inputs and Outputs (Part 2):

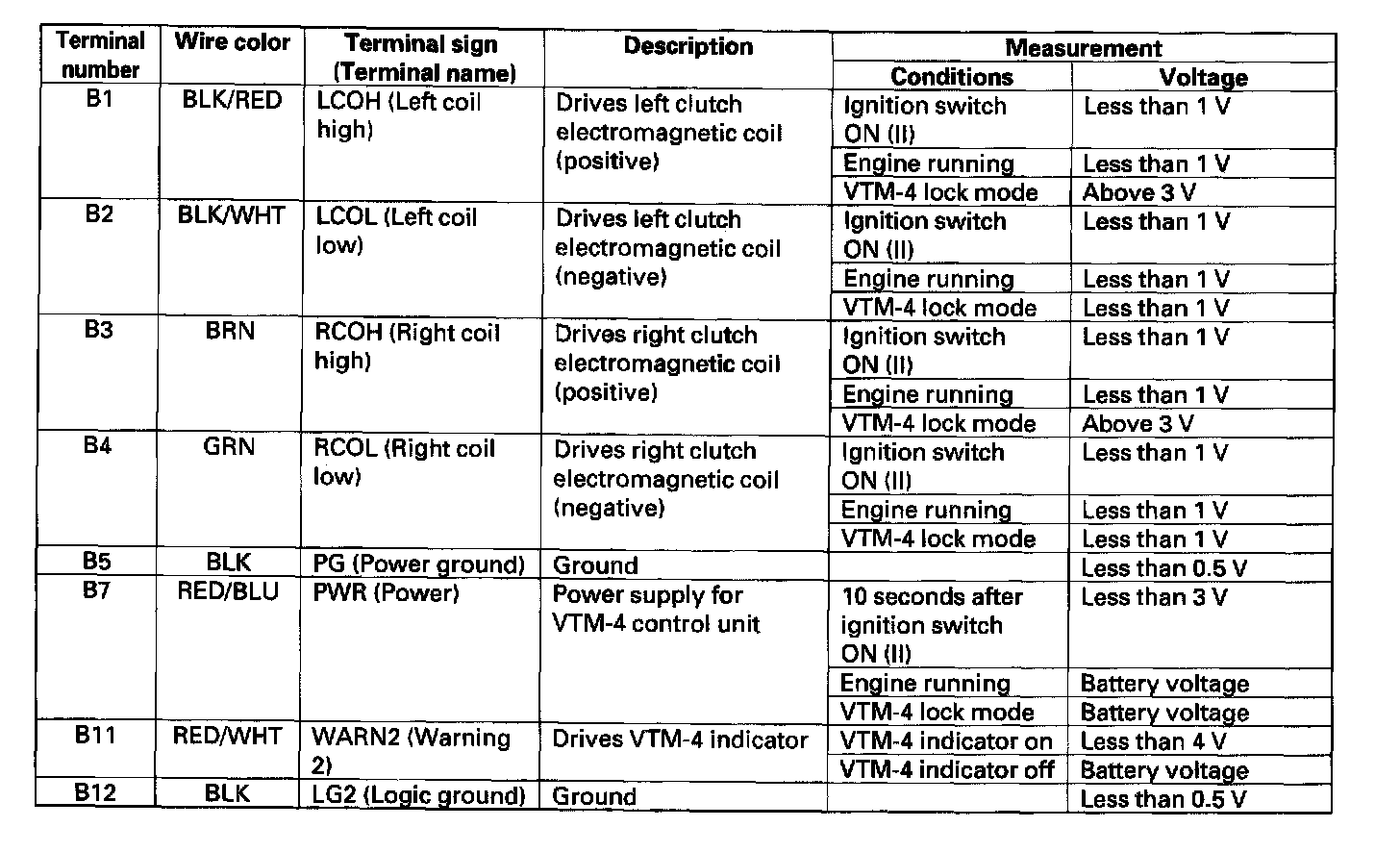

VTM-4 Control Unit Inputs and Outputs (Part 3):
