Backlash Inspection

Backlash Inspection

NOTICE: Connecting battery voltage to either the right or left clutch electromagnetic coils for more than 3 minutes will damage the rear differential.

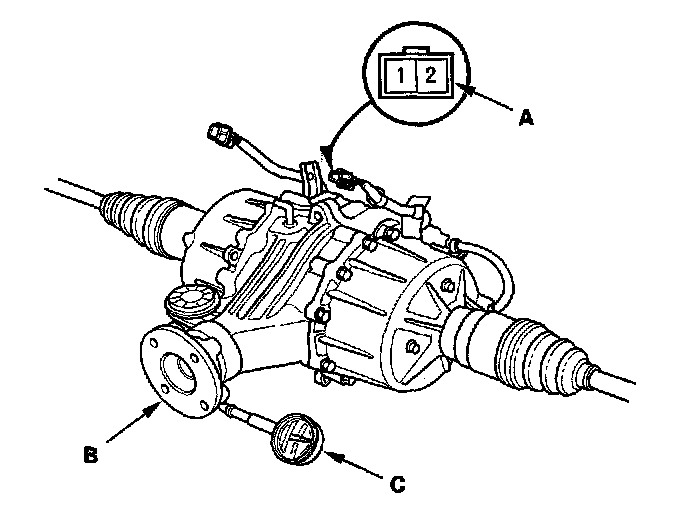

1. Install the left rear driveshaft, then connect the battery power to the No. 1 terminal of the left clutch electromagnetic coil 2P connector (A) and ground to the No. 2 terminal.





2. Check the backlash of the companion flange (B) with a dial indicator (C).

Standard: 1.23-2.38 mm (0.048-0.094 in.)

3. If the backlash is out of standard, replace the rear differential.
