Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender.

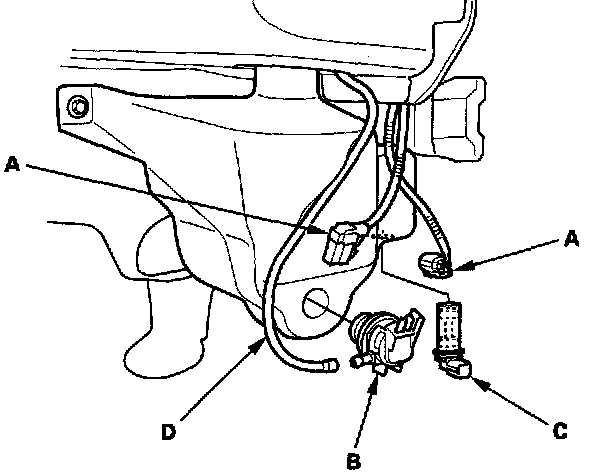

2. Disconnect the 2P connectors (A) from the washer motor (B) and the washer fluid level switch (C).
3. Disconnect the windshield washer tube (D).

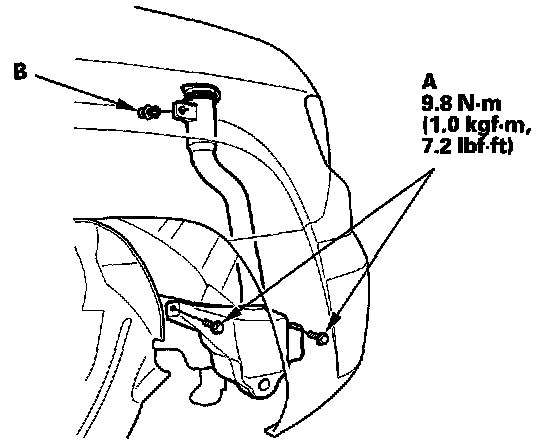

4. Remove the bolts (A) and the clip (B), then remove the washer reservoir.
5. Install in the reverse order of removal.
