Rear Console Removal/Installation
Rear Console Removal/InstallationSpecial Tools Required
- KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the front seat and related parts.
1. Remove these items:
- Center console
- Rear tray
- Roll bar lower trim, both sides

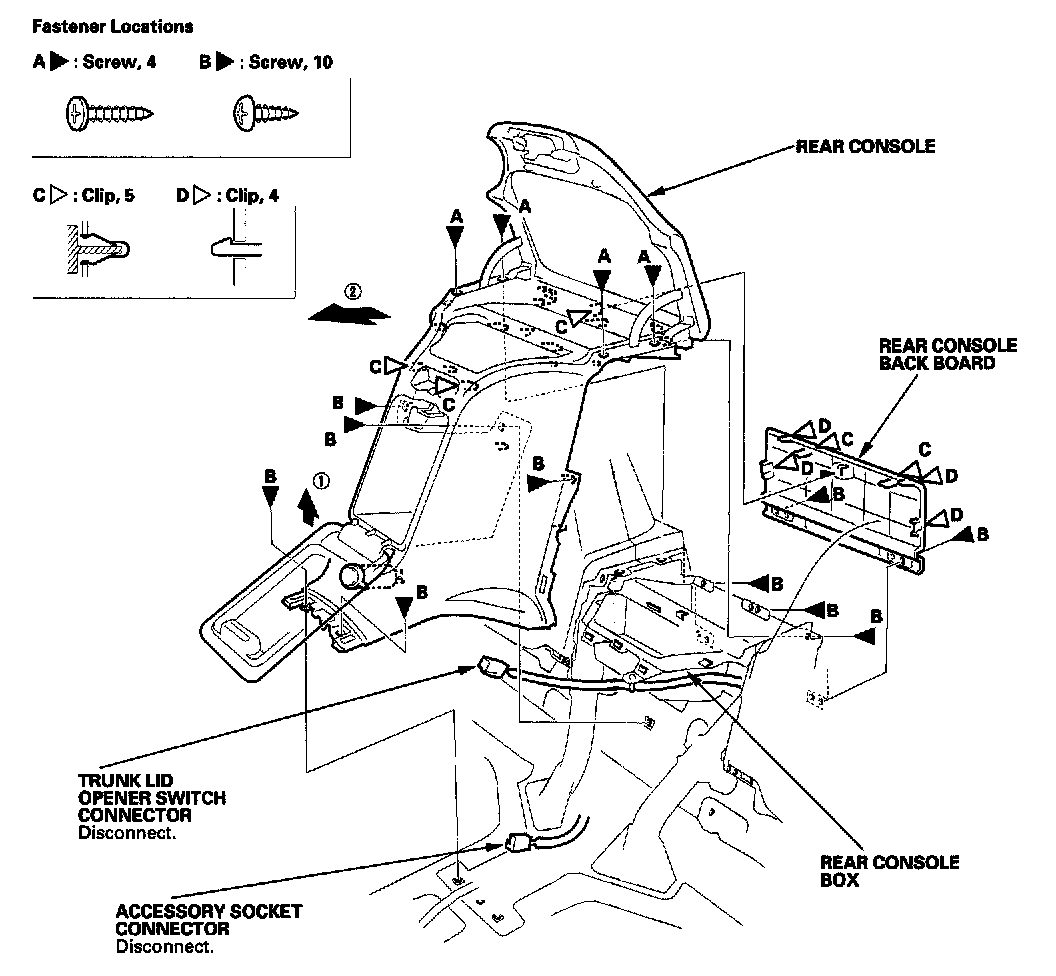

2. Remove the rear console as shown.
3. Install the rear console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Push the clips into place securely.
