Hard Top: Testing and Inspection

Convertible Top Disable Switch Test

NOTE: For the convertible top disable switch circuit diagram, Refer to the Convertible Top Circuit Diagram and the Rear Window Defogger Circuit Diagram.

1. Remove the left rear side trim.

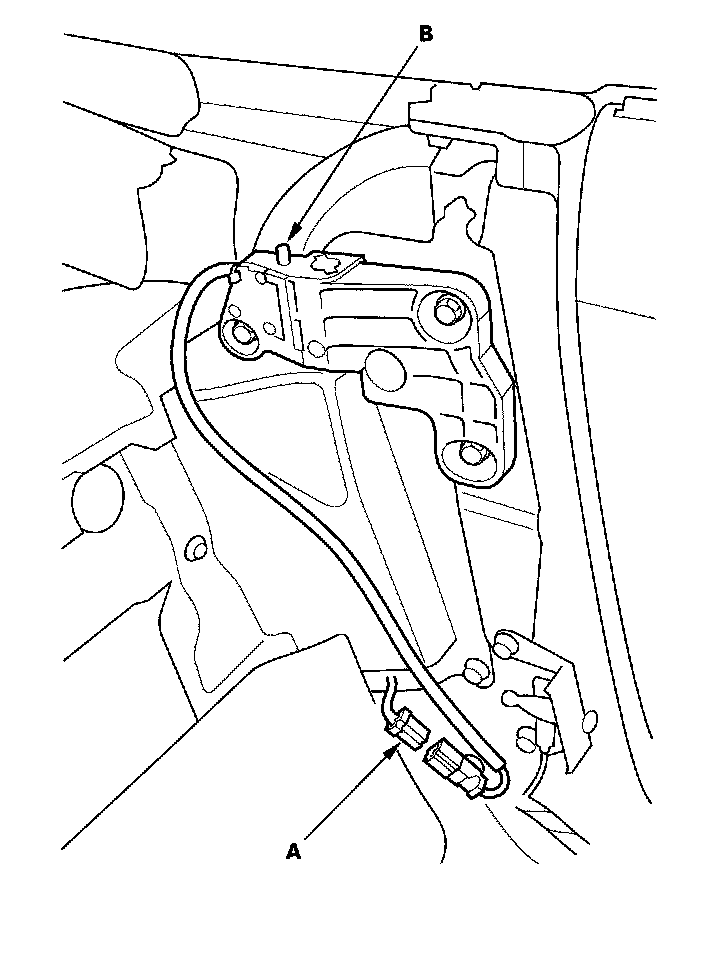

2. Disconnect the 2P connector (A) from the convertible top disable switch (B).

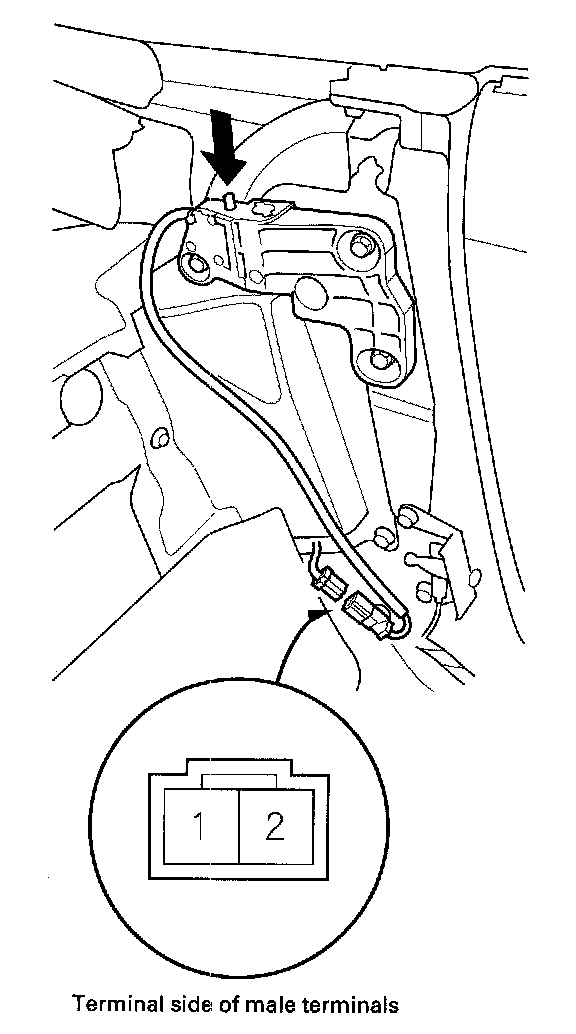

3. Push the convertible top disable switch.
4. Check for continuity between the No. 1 and No. 2 terminals.
There should be continuity.
5. If the continuity is not as specified, replace the switch.
