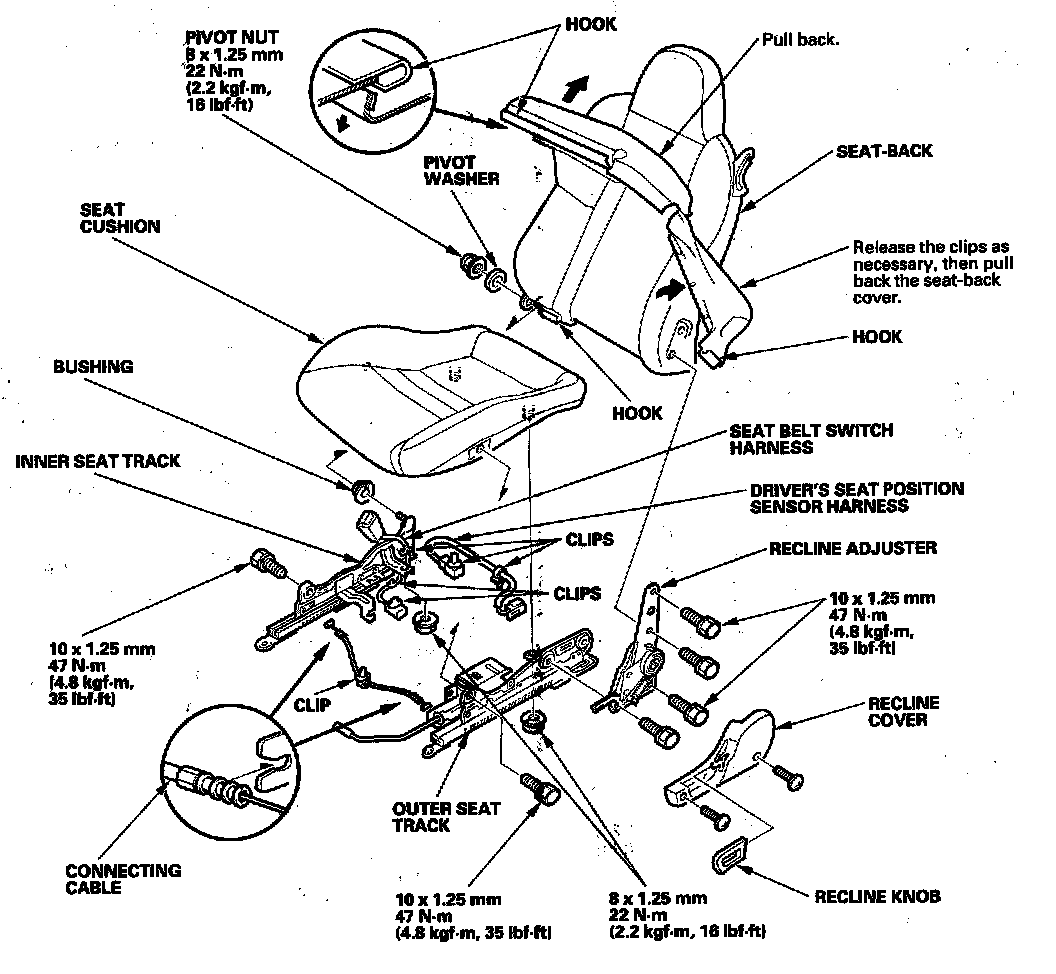

Seat Disassembly/Reassembly - Driver's
Seat Disassembly/Reassembly - Driver'sSpecial Tools Required
KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
'06-07 Models
- SRS components are located in this area. Review the SRS component locations for the appropriate model.
- Also review the precautions and procedures before performing repairs or service.
- The operation of the driver's seat position sensor must be checked after any of these actions:
- Driver's seat position sensor replacement
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the body or tear the seat covers.
- Put on gloves to protect your hands.
- Make sure the bushing and pivot washer are installed correctly.
- Apply multipurpose grease to the moving portion of the seat track.
- To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.
- Adjust the connecting cable as necessary.
- Make sure the connecting cable is connected properly.
